2015-2X05G00D-7.4-6.2-0.8T-P

Active

Oupiin

PIN HEADER, DOUBLE ROW, 10 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.65
		1000	$ 0.54
		2000	$ 0.43
		3000	$ 0.37
		4000	$ 0.32

Description

General part information

2015 Series

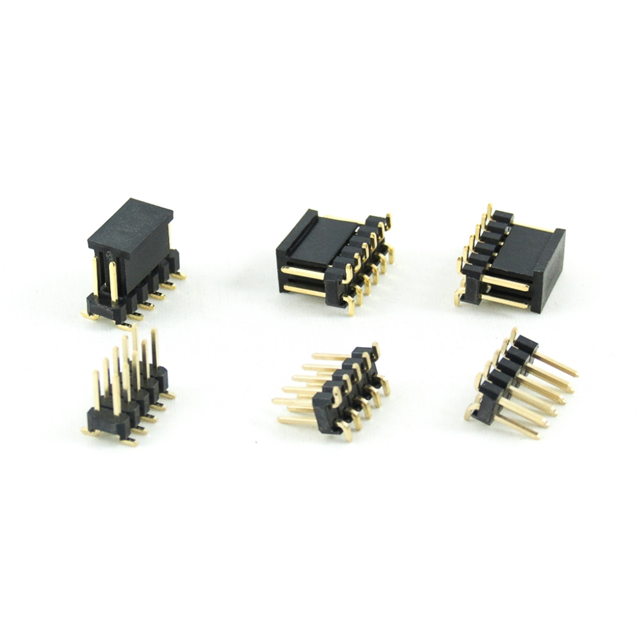

Connector Header Surface Mount 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2015-2X05G00D-7.4-6.2-0.8T-P	2015 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold, Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	0.244 "	0.244 - 0.276 "
Contact Length - Mating	6.2 mm	0.319 - 7 mm
Contact Length - Mating	-	8.1 mm
Contact Material	Brass	Brass, Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)	Nylon 6T, Polyamide (PA6T), Plastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	10	2 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	1.5 mm	1.5 - 2.54 mm
Row Spacing - Mating [x]	0.059 in	0.059 - 0.1 in
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

2015 Series

PIN HEADER, DOUBLE ROW, 26 PIN,

Part	Current Rating (Amps)	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Shrouding	Termination	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Type	Contact Finish - Mating	Contact Material	Connector Type	Insulation Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Shape	Features	Mounting Type	Contact Length - Mating	Number of Positions
Oupiin 2015-2X13G00DT-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	26	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X05G00D-7.4-6.2-0.8T-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	10	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X05G00DB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	10	2.54 mm	0.1 in	Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
Oupiin 2015-1X40G01DBB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	1	-40 °C	105 ░C		0.244 "	6.2 mm		Unshrouded	Solder	40			Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
Oupiin 2015-1X06G01DAB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	1	-40 °C	105 ░C		0.244 "	6.2 mm		Unshrouded	Solder	6			Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
Oupiin 2015-2X07G00DT-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	14	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X09G00D-7.4-8.1-0.8B	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash		0.319 in	Flash	Unshrouded	Solder	18	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square		Surface Mount	8.1 mm
Oupiin 2015-2X07G01DU-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	14	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X08G00DB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder		2.54 mm	0.1 in	Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount		16
Oupiin 2015-2X20G00DB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	40	2.54 mm	0.1 in	Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
