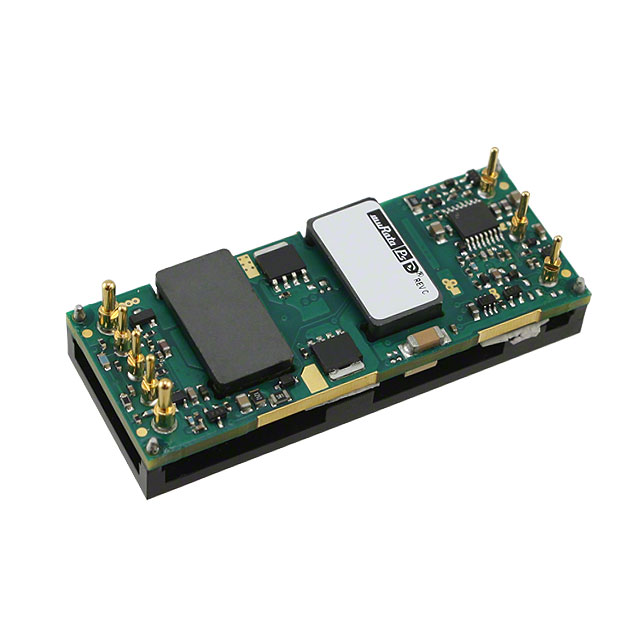

UEE-3.3/25-D48NM-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 83W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UEE-3.3/25-D48NM-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 83W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UEE-3.3/25-D48NM-C | UEE-3.3 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 25 A | 25 - 45.5 A |
| Efficiency | 90 % | 90 - 92 % |
| Features | OVP, UVLO, OCP, Remote On/Off, SCP | OTP, UVLO, SCP, Remote On/Off, OCP, OVP |
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 1/8 Brick, 8-SMD Module | 8-DIP Module, 1/8 Brick, 8-SMD Module |
| Power (Watts) | 83 W | 82 - 150 W |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 0.9 " | 0.9 " |
| Size / Dimension [y] | 22.9 mm | 22.9 mm |
| Size / Dimension [z] | 0.4 " | 0.4 - 0.5 in |
| Size / Dimension [z] | 10.2 mm | 10.2 - 12.7 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UEE-3.3 Series
DC DC CONVERTER 3.3V 150W
| Part | Efficiency | Voltage - Output 1 | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Features | Package / Case | Type | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UEE-3.3/45-D48NB-C | 92 % | 3.3 V | 75 V | 36 V | 45.5 A | OCP, OTP, Remote On/Off, SCP, UVLO | 1/8 Brick, 8-DIP Module | Isolated Module | ITE (Commercial) | Through Hole | 85 °C | -40 °C | 1 | 2250 VDC | 22.9 mm | 58.4 mm | 12.7 mm | 0.5 in | 2.3 in | 0.9 " | 150 W | Active Low, Enable |
Murata Power Solutions Inc. UEE-3.3/25-D48NM-C | 90 % | 3.3 V | 75 V | 36 V | 25 A | OCP, OVP, Remote On/Off, SCP, UVLO | 1/8 Brick, 8-SMD Module | Isolated Module | ITE (Commercial) | Surface Mount | 85 °C | -40 °C | 1 | 2250 VDC | 22.9 mm | 58.4 mm | 10.2 mm | 0.4 " | 2.3 in | 0.9 " | 83 W | Active Low, Enable |
Murata Power Solutions Inc. UEE-3.3/30-D48NB-C | 90 % | 3.3 V | 75 V | 36 V | 30 A | OCP, OTP, Remote On/Off, SCP, UVLO | 1/8 Brick, 8-DIP Module | Isolated Module | ITE (Commercial) | Through Hole | 85 °C | -40 °C | 1 | 2250 VDC | 22.9 mm | 58.4 mm | 12.7 mm | 0.5 in | 2.3 in | 0.9 " | 99 W | Active Low, Enable |
Murata Power Solutions Inc. UEE-3.3/25-D48N-C | 90 % | 3.3 V | 75 V | 36 V | 25 A | Remote On/Off | 1/8 Brick, 8-DIP Module | Isolated Module | ITE (Commercial) | Through Hole | 85 °C | -40 °C | 1 | 2250 VDC | 22.9 mm | 58.4 mm | 10.2 mm | 0.4 " | 2.3 in | 0.9 " | 82 W | Active Low, Enable |
Murata Power Solutions Inc. UEE-3.3/25-D48N-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UEE-3.3/45-D48PM-C | 92 % | 3.3 V | 75 V | 36 V | 45.5 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1/8 Brick, 8-SMD Module | Isolated Module | ITE (Commercial) | Surface Mount | 85 °C | -40 °C | 1 | 2250 VDC | 22.9 mm | 58.4 mm | 10.7 mm | 0.42 in | 2.3 in | 0.9 " | 150 W | Active High, Enable |
Murata Power Solutions Inc. UEE-3.3/45-D48N-C | 92 % | 3.3 V | 75 V | 36 V | 45.5 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1/8 Brick, 8-DIP Module | Isolated Module | ITE (Commercial) | Through Hole | 85 °C | -40 °C | 1 | 2250 VDC | 22.9 mm | 58.4 mm | 10.7 mm | 0.42 in | 2.3 in | 0.9 " | 150 W | Active Low, Enable |
Description
General part information
UEE-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 75V Input
