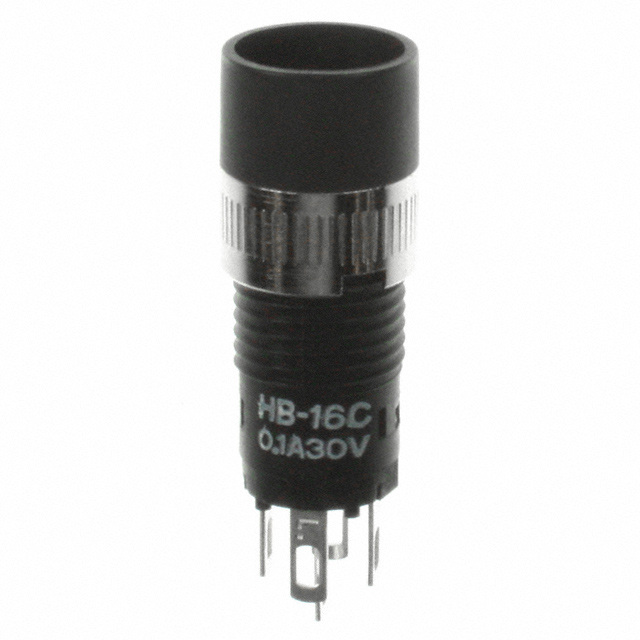

HB16CKW01
ActiveNKK Switches
PUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-ON, PLUNGER FOR CAP
HB16CKW01
ActiveNKK Switches
PUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-ON, PLUNGER FOR CAP
Description
General part information
hb Series
Pushbutton Switch SPDT Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | HB16CKW01 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Current Rating | 100 mA |
| Electrical Life (Cycles) | 50000 |
| Mechanical Life (Cycles) | 100000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 8 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 30 V |
| Voltage Rating - DC | 30 V |
