SDE0805A-331K

Active

Bourns Inc.

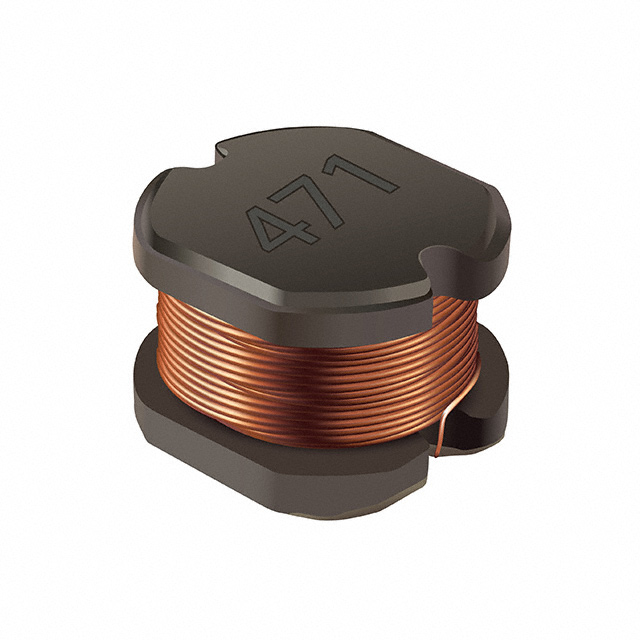

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE0805A SERIES, 330 H, 10%, UNSHIELDED, 1.2 OHM, 650 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

SDE0805A-331K

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE0805A SERIES, 330 H, 10%, UNSHIELDED, 1.2 OHM, 650 MA

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDE0805A-331K

Current - Saturation (Isat)	500 mA
Current Rating (Amps)	650 mA
DC Resistance (DCR) [Max]	1.2 Ohm
Frequency - Self Resonant	4.9 MHz
Height - Seated (Max) [Max]	0.217 in
Height - Seated (Max) [Max]	5.5 mm
Inductance	330 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	0.307 in
Size / Dimension [x]	7.8 mm
Size / Dimension [y]	0.276 in
Size / Dimension [y]	7 mm
Tolerance	10 %
Type	Wirewound, Drum Core

SDE0805A Series

Part	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Current - Saturation (Isat)	Material - Core	Type	Ratings	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Package / Case	Tolerance	DC Resistance (DCR)	Inductance Frequency - Test
Bourns Inc. SDE0805A-331K	1.2 Ohm	4.9 MHz	0.217 in	5.5 mm	Surface Mount	500 mA	Ferrite	Drum Core Wirewound	AEC-Q200	650 mA	125 °C	-40 °C	330 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	10 %
Bourns Inc. SDE0805A-220M		16.5 MHz	0.217 in	5.5 mm	Surface Mount	1.8 A	Ferrite	Drum Core Wirewound	AEC-Q200	2.35 A	125 °C	-40 °C	22 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	20 %	110 mOhm	1 MHz
Bourns Inc. SDE0805A-271K	1.11 Ohm	5 MHz	0.217 in	5.5 mm	Surface Mount	550 mA	Ferrite	Drum Core Wirewound	AEC-Q200	700 mA	125 °C	-40 °C	270 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	10 %
Bourns Inc. SDE0805A-560K	240 mOhm	11.5 MHz	0.217 in	5.5 mm	Surface Mount	1.2 A	Ferrite	Drum Core Wirewound	AEC-Q200	1.6 A	125 °C	-40 °C	56 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	10 %		1 MHz
Bourns Inc. SDE0805A-100M	70 mOhm	27.5 MHz	0.217 in	5.5 mm	Surface Mount	2.6 A	Ferrite	Drum Core Wirewound	AEC-Q200	3.2 A	125 °C	-40 °C	10 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	20 %		1 MHz
Bourns Inc. SDE0805A-330M	130 mOhm	13.2 MHz	0.217 in	5.5 mm	Surface Mount	1.6 A	Ferrite	Drum Core Wirewound	AEC-Q200	2 A	125 °C	-40 °C	33 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	20 %		1 MHz
Bourns Inc. SDE0805A-5R6M	43 mOhm	34.9 MHz	0.217 in	5.5 mm	Surface Mount	3.7 A	Ferrite	Drum Core Wirewound	AEC-Q200	4 A	125 °C	-40 °C	5.6 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	20 %		1 MHz
Bourns Inc. SDE0805A-150M	90 mOhm	22.5 MHz	0.217 in	5.5 mm	Surface Mount	2.2 A	Ferrite	Drum Core Wirewound	AEC-Q200	2.5 A	125 °C	-40 °C	15 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	20 %		1 MHz
Bourns Inc. SDE0805A-181K	710 mOhm	6.2 MHz	0.217 in	5.5 mm	Surface Mount	650 mA	Ferrite	Drum Core Wirewound	AEC-Q200	0.85 A	125 °C	-40 °C	180 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	10 %
Bourns Inc. SDE0805A-2R5M		71.2 MHz	0.217 in	5.5 mm	Surface Mount	5 A	Ferrite	Drum Core Wirewound	AEC-Q200	5 A	125 °C	-40 °C	2.5 µH	0.276 in	0.307 in	7 mm	7.8 mm	Unshielded	Nonstandard	20 %	27 mOhm	1 MHz
