1-794954-0

Active

TE Connectivity AMP Connectors

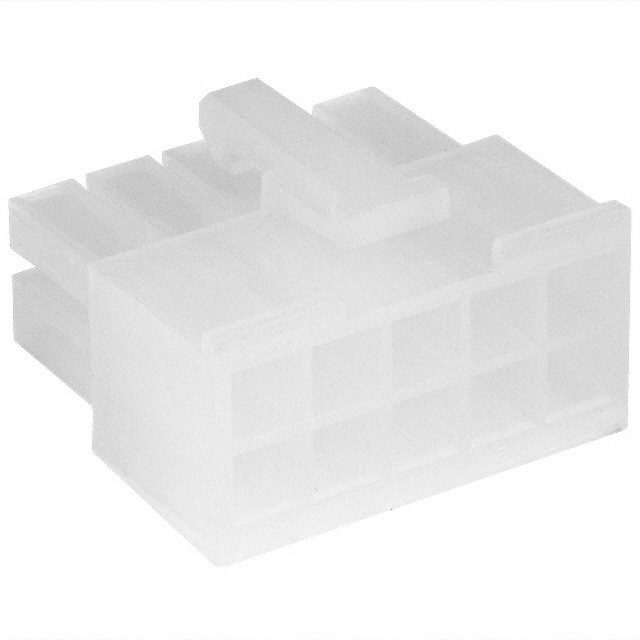

CONN RCPT HSG 10POS 4.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 10POS 4.20MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Receptacle Natural 0.165" (4.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 2POS

Part	Insulation Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Mounting Type	Fastening Type	Connector Type	Row Spacing	Row Spacing	Contact Termination	Color	Note	Pitch [x]	Pitch [x]	Number of Positions
TE Connectivity AMP Connectors 794954-2	Nylon, Polyamide (PA)	2	-40 °C	105 ░C	Female Socket	2	Free Hanging (In-Line)	Latch Lock	Receptacle	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included
TE Connectivity AMP Connectors 2-794954-2	Nylon, Polyamide (PA)	2	-40 °C	105 ░C	Female Socket	22 positions	Free Hanging (In-Line)	Latch Lock	Receptacle	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	4.2 mm	0.165 in
TE Connectivity AMP Connectors 1-794954-6	Nylon, Polyamide (PA)	2	-40 °C	105 ░C	Female Socket		Free Hanging (In-Line)	Latch Lock	Receptacle	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	4.2 mm	0.165 in	16
TE Connectivity AMP Connectors 1-794954-2	Nylon, Polyamide (PA)	2	-40 °C	105 ░C	Female Socket	12	Free Hanging (In-Line)	Latch Lock	Receptacle	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	4.2 mm	0.165 in
TE Connectivity AMP Connectors 1-794954-0	Nylon, Polyamide (PA)	2	-40 °C	105 ░C	Female Socket	10	Free Hanging (In-Line)	Latch Lock	Receptacle	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	4.2 mm	0.165 in
TE Connectivity AMP Connectors 794954-8	Nylon, Polyamide (PA)	2	-40 °C	105 ░C	Female Socket	8	Free Hanging (In-Line)	Latch Lock	Receptacle	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	4.2 mm	0.165 in
