FW-15-03-G-D-225-075-ES-A

Active

Samtec Inc.

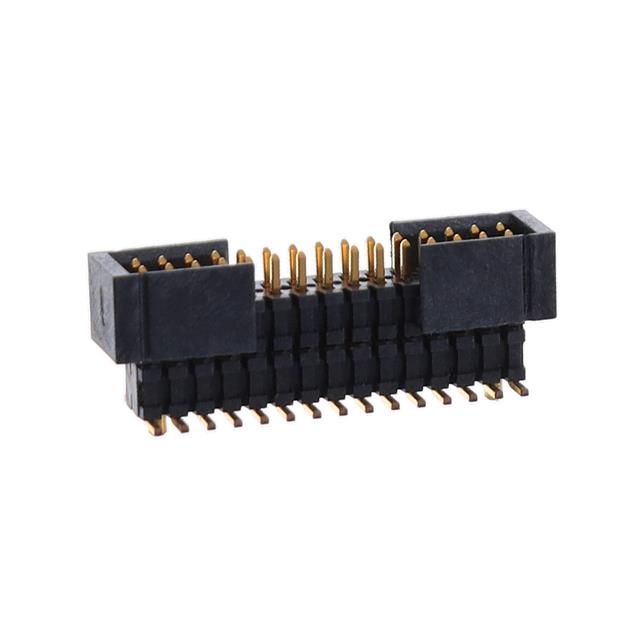

CONN BOARD STACKER HDR 30 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER CLAW™ TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FW-15-03-G-D-225-075-ES-A

Active

Samtec Inc.

CONN BOARD STACKER HDR 30 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER CLAW™ TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FW-15-03-G-D-225-075-ES-A

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	7.62 mm
Length - Overall Pin [x]	0.3 in
Length - Post (Mating) [x]	0.075 in
Length - Post (Mating) [x]	1.905 mm
Length - Stack Height [x]	5.715 mm
Length - Stack Height [x]	0.225 in
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Termination	Solder

FW-15-03 Series

...

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Length - Overall Pin [x]	Length - Overall Pin	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Mounting Type	Row Spacing	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]	Termination	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin
Samtec Inc. FW-15-03-L-D-215-065	1.651 mm	0.065 in	Black	0.28 in	7.112 mm	30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in	5.461 mm	0.215 in	Solder
Samtec Inc. FW-15-03-G-D-195-180-P-TR	4.572 mm	0.18 in	Black	0.375 in		30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in	4.953 mm	0.195 in	Solder	9.525 mm
Samtec Inc. FW-15-03-G-D-235-085-A-P	2.159 mm	0.085 in	Black		8.128 mm	30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in			Solder		0.235 in	5.969 mm	0.32 in
Samtec Inc. FW-15-03-G-D-260-075-A	1.905 mm	0.075 in	Black	0.335 in		30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in	6.604 mm	0.26 in	Solder	8.509 mm
Samtec Inc. FW-15-03-G-D-226-075	1.905 mm	0.075 in	Black	0.301 in		30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in	5.74 mm	0.226 in	Solder	7.645 mm
Samtec Inc. FW-15-03-F-D-310-075	1.905 mm	0.075 in	Black	0.385 in		30	0.076 Ám	3 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in			Solder	9.779 mm	0.31 in	7.874 mm
Samtec Inc. FW-15-03-G-D-225-075-ES-A	1.905 mm	0.075 in	Black	0.3 in		30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in			Solder	7.62 mm	0.225 in	5.715 mm
Samtec Inc. FW-15-03-F-D-215-130-A-P	3.302 mm	0.13 in	Black		8.763 mm	30	0.076 Ám	3 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in	5.461 mm	0.215 in	Solder				0.345 in
Samtec Inc. FW-15-03-L-D-200-150-P-TR	3.81 mm	0.15 in	Black	0.35 in		30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in			Solder	8.89 mm
Samtec Inc. FW-15-03-G-D-303-065-A	1.651 mm	0.065 in	Black		9.347 mm	30	0.25 Ám	10 Áin	2	Gold	0.05 in	1.27 mm	Surface Mount	1.27 mm	0.05 in			Solder		0.303 in	7.696 mm	0.368 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 6.37
Digikey	Tube	1	$ 8.79
		10	$ 6.75
		100	$ 5.74

Description

General part information

FW-15-03 Series

30 Position Header Spacer Connector 0.050" (1.27mm) Gold Surface Mount
