BU-115-0

Active

MUELLER ELECTRIC

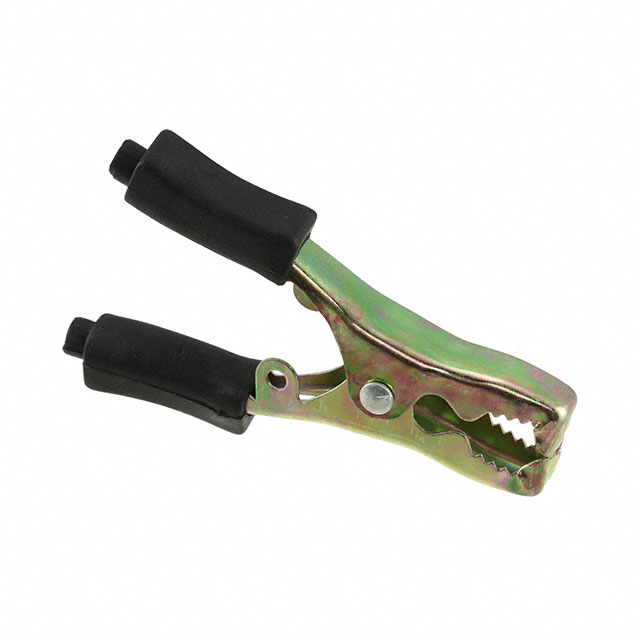

MINI BATTERY CLIP, 13 MM, 40 A, BLACK

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

MINI BATTERY CLIP, 13 MM, 40 A, BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-115-0	BU-115 Series

Color	Black	Black, Red
Current Rating (Amps)	40 A	40 A
Insulation	Insulated Sleeve	Insulated Sleeve
Jaw Opening	12.7 mm	12.7 mm
Jaw Opening	0.5 in	0.5 in
Length	3 in	3 in
Length	76.2 mm	76.2 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Plating	Zinc	Zinc
Quantity	1 Box	1 Box
Termination	Crimp or Solder	Crimp or Solder
Type	Battery Terminal Clamp, Miniature	Battery Terminal Clamp, Miniature

MINI BATTERY CLIP, 13 MM, 40 A, BLACK

Part	Current Rating (Amps)	Plating	Type	Insulation	Length	Length	Color	Material - Insulation	Jaw Opening	Jaw Opening	Quantity	Termination
MUELLER ELECTRIC BU-115-0	40 A	Zinc	Battery Terminal Clamp, Miniature	Insulated Sleeve	3 in	76.2 mm	Black	Poly-Vinyl Chloride (PVC)	12.7 mm	0.5 in	1 Box	Crimp or Solder
MUELLER ELECTRIC BU-115-2	40 A	Zinc	Battery Terminal Clamp, Miniature	Insulated Sleeve	3 in	76.2 mm	Red	Poly-Vinyl Chloride (PVC)	12.7 mm	0.5 in	1 Box	Crimp or Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 A Insulated Sleeve Battery Terminal Clamp, Miniature Test Clip Steel 0.500" (12.70mm) 1/2"
