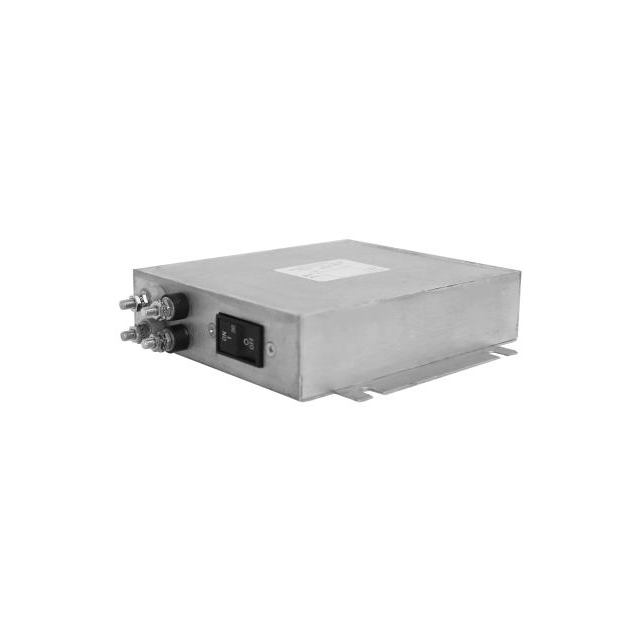

RP600C-80-4.7-C-B

Active

Astrodyne TDI

LINE FILT 100VDC 100VAC 80A CHAS

RP600C-80-4.7-C-B

Active

Astrodyne TDI

LINE FILT 100VDC 100VAC 80A CHAS

Description Specifications Series Pricing CAD Documents

Description

General part information

RP600 Series

DC EMC/EMI Line Filter 80 A 100V 100V Two Stage Terminal Block

Technical Specifications

Parameters and characteristics for this part

Specification	RP600C-80-4.7-C-B

Applications	General Purpose
Approval Agency	SEMKO, ENEC, CSA, cURus, CE
Configuration	Two Stage
Current	80 A
Filter Type	DC
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Block
Voltage - Rated AC	100 V
Voltage - Rated DC	100 V

RP600 Series

...

Part	Termination Style	Voltage - Rated DC	Filter Type	Voltage - Rated AC	Mounting Type	Configuration	Approval Agency	Applications	Current	Operating Temperature (Min)	Operating Temperature (Max)	Termination Size	Thread Size
Astrodyne TDI RP600C-15-10-C-F	Terminal Block	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	15 A	-25 °C	100 °C
Astrodyne TDI RP600C-80-10-S-B	Threaded Post (M6)	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	80 A	-25 °C	100 °C
Astrodyne TDI RP600C-80-4.7-S-B	Threaded Post (M6)	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	80 A	-25 °C	100 °C
Astrodyne TDI RP600C-60-10-S-B	Threaded Post Threaded Post (M5)	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	60 A	-25 °C	100 °C	5 mm	M5
Astrodyne TDI RP600C-80-100-C-B	Terminal Block	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	80 A	-25 °C	100 °C
Astrodyne TDI RP600-125-1000-C-F	Terminal Block	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	125 A	-25 °C	100 °C
Astrodyne TDI RP600C-15-100-C-B	Terminal Block	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	15 A	-25 °C	100 °C
Astrodyne TDI RP600C-80-4.7-C-B	Terminal Block	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	80 A	-25 °C	100 °C
Astrodyne TDI RP600C-30-4.7-S-F	Threaded Post Threaded Post (M5)	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	30 A	-25 °C	100 °C	5 mm	M5
Astrodyne TDI RP600C-15-100-C-F	Terminal Block	100 V	DC	100 V	Chassis Mount	Two Stage	CE CSA cURus ENEC SEMKO	General Purpose	15 A	-25 °C	100 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RP600C-80-4.7-C-B | Datasheet
