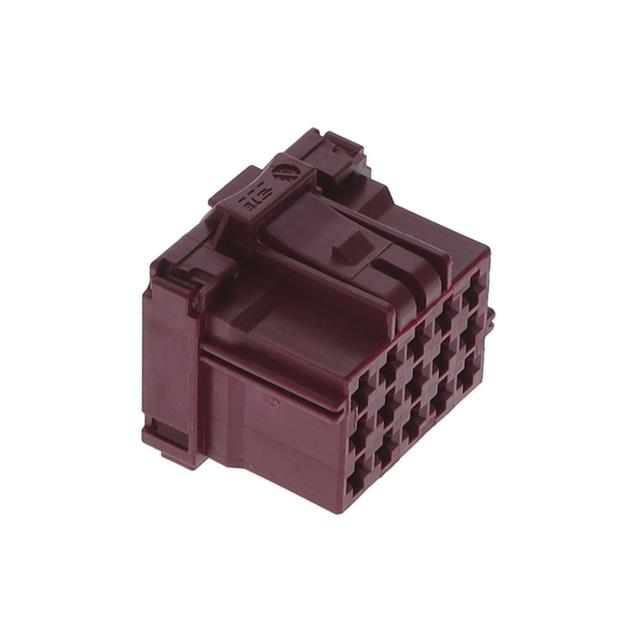

5-968973-1
ActiveTE Connectivity AMP Connectors
AMP MCP 2.8 HSG 15 POS. 2.LOCKIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-968973-1 |
|---|---|
| Color | Violet |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing | 0.217 in |
| Row Spacing | 5.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.79 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.39 | |||
| 250 | $ 1.26 | |||
| 500 | $ 1.16 | |||
| 1200 | $ 0.99 | |||
| 3600 | $ 0.93 | |||
968973 Series
AMP MCP 2.8 HSG 15 POS. 2.LOCKIN
| Part | Connector Type | Number of Rows | Fastening Type | Contact Type | Color | Row Spacing | Row Spacing | Number of Positions | Contact Termination | Pitch [x] | Pitch [x] | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-968973-1 | Receptacle | 3 | Latch Lock | Female Socket | Violet | 0.217 in | 5.5 mm | 15 | Crimp | 5 mm | 0.197 in | Free Hanging (In-Line) | Terminal Position Lock (TPA) | -40 °C | 120 °C | Polybutylene Terephthalate (PBT), Glass Filled |
Description
General part information
968973 Series
15 Rectangular Connectors - Housings Receptacle Violet 0.197" (5.00mm)
