MCW0612MC4700FP500

MCW0612MC4700FP500

Active

THIN FILM RESISTORS - SMD MCW 0612-50 1% AT P5 470R

MCW0612MC4700FP500

MCW0612MC4700FP500

Active

THIN FILM RESISTORS - SMD MCW 0612-50 1% AT P5 470R

Description Series Pricing CAD Documents

Description

General part information

MCW AT - Professional Series

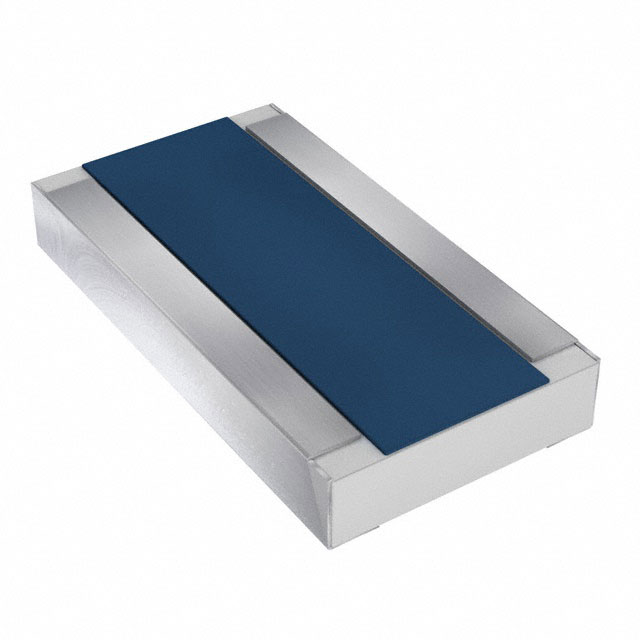

470 Ohms ±1% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Anti-Sulfur, Automotive AEC-Q200 Thin Film

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MCW0612MC4700FP500 | Datasheet

MCW AT Series Brief

MCW AT Capabilities, Custom Options

MCW0612MC4700FP500 Datasheet

MCW AT - Professional Series

Part	Size / Dimension Length	Size / Dimension Width	Package Name	Supplier Device Package	Temperature Coefficient	Ratings	Package / Case	Number of Terminations	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	Features	Power (Watts)	Height - Seated (Max)	Composition	Power (Watts) Options
Vishay Dale MCW0612MC4700FP500	0.063 in	0.122 in	0612	0612	50 ppm/°C	AEC-Q200	0612 Wide 1206 (3216 Metric)	2	470 Ohm	175 °C	-55 °C	1 %	Anti-Sulfur Automotive AEC-Q200	1 W	0.024 in	Thin Film
Vishay Dale MCW0406MC5119FP500
Vishay Dale MCW0612MC6809FP100	0.063 in	0.122 in			50 ppm/°C	AEC-Q200	0612 Wide 1206 (3216 Metric)	2	68 Ohm	125 °C	-55 °C	1 %	Anti-Sulfur Automotive AEC-Q200	500 mW	0.024 in	Thin Film	1/2W
Vishay Dale MCW0406MC4642FP500
Vishay Dale MCW0406MC1500FP500
Vishay Dale MCW0612MC4700FP500
Vishay Dale MCW0406MC4641FP500	0.039 in	0.059 in	0406		50 ppm/°C		0406 Wide 0604 (1610 Metric)	2	4.64 kOhm	175 °C	-55 °C	1 %	Anti-Sulfur Automotive AEC-Q200	300 mW	0.014 in	Thin Film
Vishay Dale MCW0406MC8209FP500
Vishay Dale MCW0406MC4641FPW00
Vishay Dale MCW0406MC4641FP500	0.039 in	0.059 in	0406		50 ppm/°C	AEC-Q200	0406 Wide 0604 (1610 Metric)	2	4.64 kOhm	175 °C	-55 °C	1 %	Anti-Sulfur Automotive AEC-Q200	300 mW	0.014 in	Thin Film
