81080-500203-RB

Obsolete

3M (TC)

80000901902 81080-500203-RB=80/MHDR/RA/.062/30AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

81080-500203-RB

Obsolete

3M (TC)

80000901902 81080-500203-RB=80/MHDR/RA/.062/30AVG/ROHS

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	81080-500203-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.14 in
Contact Length - Mating	3.56 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.31 in
Insulation Height	7.87 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

81080 Series

Part	Connector Type	Insulation Color	Style	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Number of Positions	Mounting Type	Number of Rows	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Type	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features
3M (TC) 81080-650C04-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Surface Mount	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Latch Lock/Eject Hooks Short	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.405 in	10.29 mm	UL94 V-0	All
3M (TC) 81080-600203-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Through Hole	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Push-Pull	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.405 in	10.29 mm	UL94 V-0	All	2.34 mm	0.092 in
3M (TC) 81080-600C01-RB-WG	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Surface Mount	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Push-Pull	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.405 in	10.29 mm	UL94 V-0	All
3M (TC) 81080-550203-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Through Hole Right Angle	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Latch Lock/Eject Hooks Short	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	All	2.29 mm	0.09 "	250 Áin	6.35 Ám
3M (TC) 81080-660C04-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Surface Mount	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.405 in	10.29 mm	UL94 V-0	All
3M (TC) 81080-660201-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Through Hole	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.405 in	10.29 mm	UL94 V-0	All	2.34 mm	0.092 in
3M (TC) 81080-650C08	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin-Lead	80	Surface Mount	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Latch Lock/Eject Hooks Short	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.405 in	10.29 mm	UL94 V-0	All					Board Lock Retention Clips
3M (TC) 81080-500203-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Through Hole Right Angle	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Push-Pull	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	All	2.29 mm	0.09 "
3M (TC) 81080-650C07-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Surface Mount	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	0.14 in	3.56 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Latch Lock/Eject Hooks Short	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy	0.405 in	10.29 mm	UL94 V-0	All					Retention Clips
3M (TC) 81080-660703-RB	Header	Black	Board to Cable/Wire	Gold	0.05 in	1.27 mm	Square	Tin	80	Through Hole	2	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C			2.54 mm	0.1 in	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	30 Áin	0.76 Ám	Solder	Male Pin	Copper Alloy			UL94 V-0	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	196	$ 17.82
Newark	Each	100	$ 21.76
		250	$ 21.02

Description

General part information

81080 Series

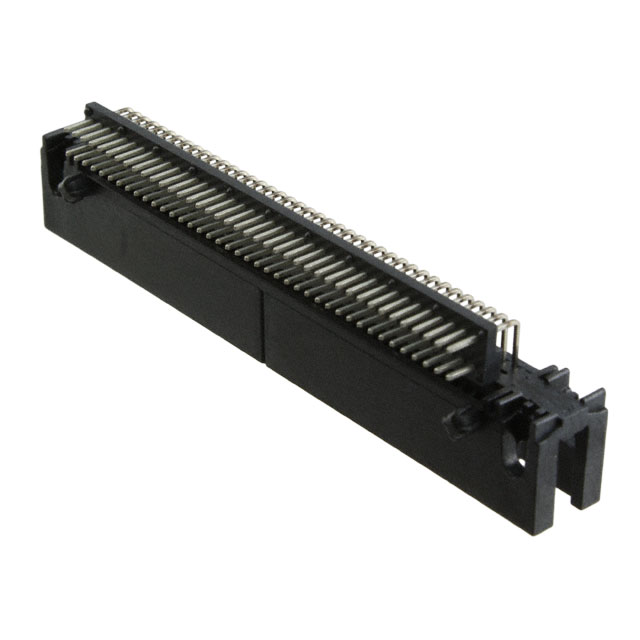

Connector Header Through Hole, Right Angle 80 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet
