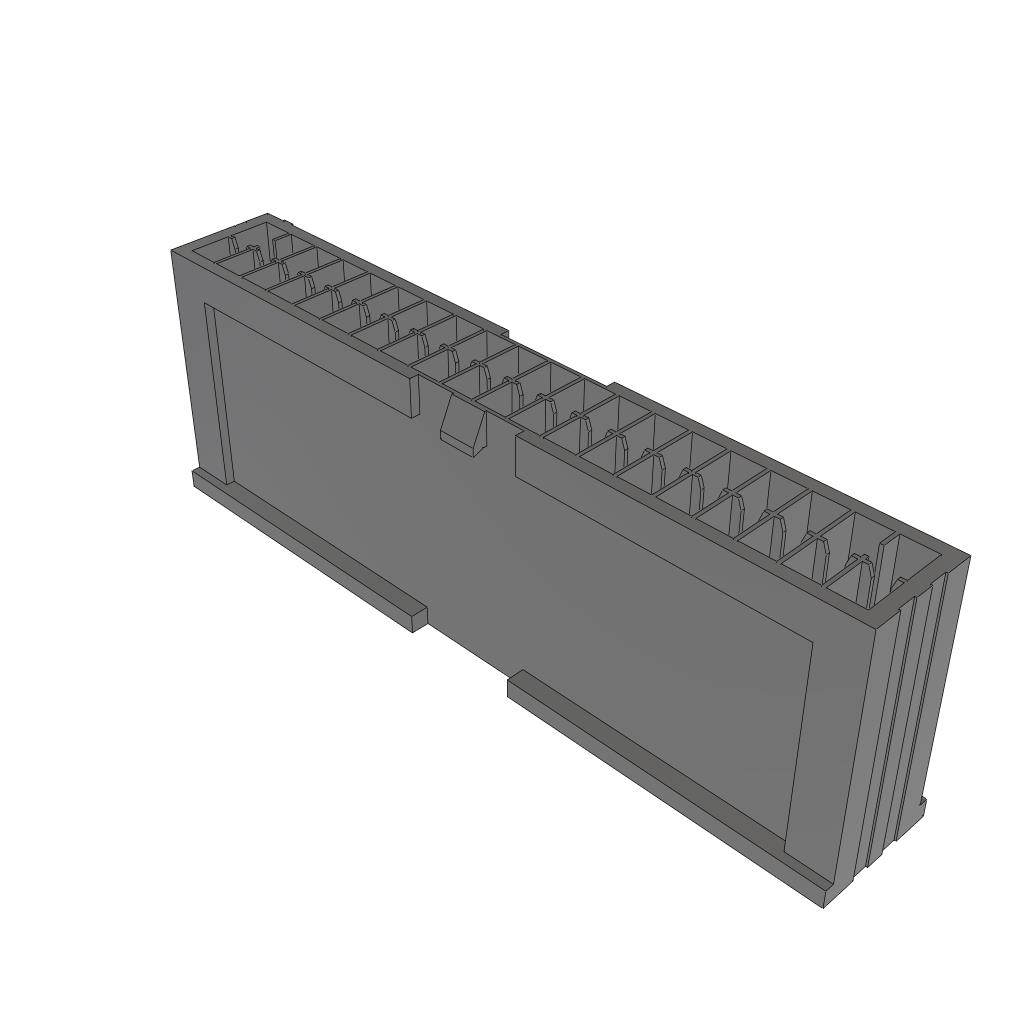

IPM1-20-D
ActiveSamtec Inc.
CONN HOUSING RCP 40 POS 2.54MM CRIMP ST CABLE MOUNT WHITE
IPM1-20-D
ActiveSamtec Inc.
CONN HOUSING RCP 40 POS 2.54MM CRIMP ST CABLE MOUNT WHITE
Description
General part information
IPM1-20 Series
40 Rectangular Connectors - Housings White 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | IPM1-20-D |
|---|---|
| Color | White |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
