Description
General part information

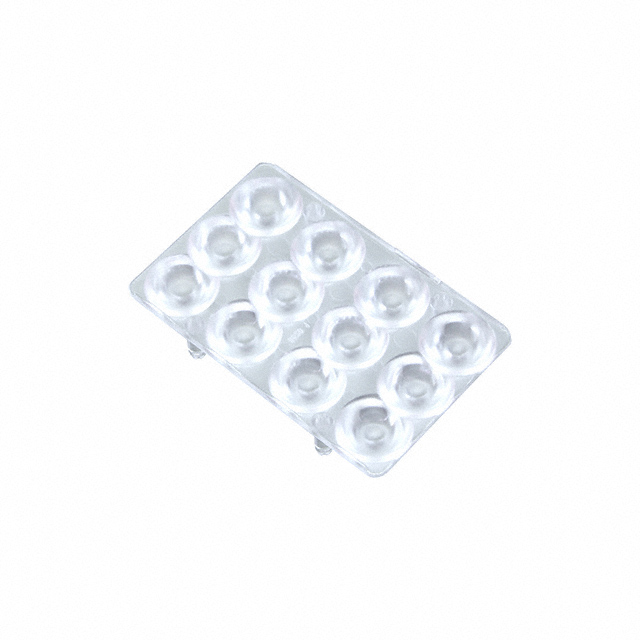

C16520 Series
Lens Clear 22° ~ 31° Medium Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | C16520_PETUNIA2 |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Lumileds, Osram, Nichia, Cree |
| Lens Length | 46.5 mm |
| Lens Style | Rectangle, Multiple Top |
| Lens Width | 29.5 mm |
| Material | Acrylic |
| Mounting Type | Snap-In |
| Number of LEDs | 12 |
| Optical Pattern | Medium |
| Type | Lens |
| Viewing Angle (Max) | 31 ° |
| Viewing Angle (Min) | 22 ° |
