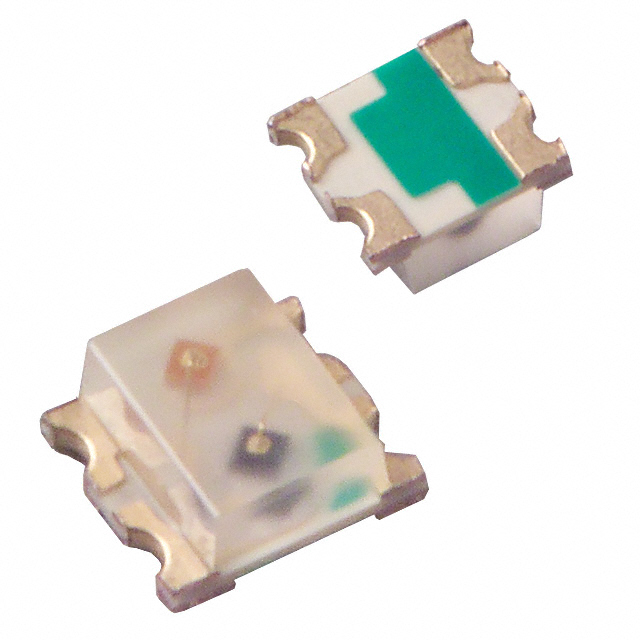

BRPG1211C-TR

Obsolete

Stanley Electric Co

LED GREEN/RED DIFFUSED SMD

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED GREEN/RED DIFFUSED SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BRPG1211C-TR	BRPG1211 Series

Color	Red, Green	Red, Green
Configuration	Independent	Common Anode, Independent
Current - Test	20 mA, 20 mA	20 mA
Height (Max) [Max] [z]	0.8 mm	0.8 - 1 mm
Lens Color	White	White
Lens Size [x]	1.1 mm	1.1 - 2 mm
Lens Size [y]	1.5 mm	1 - 1.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Domed Top, Rectangle with Flat Top
Lens Transparency	Diffused	Diffused
Millicandela Rating [custom]	6.4 mcd	5.2 - 6.4 mcd
Millicandela Rating [custom]	11.7 mcd	11.7 - 17.6 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Package / Case	-	2-SMD, No Lead
Size / Dimension [x]	1.6 mm	1.6 - 3 mm
Size / Dimension [y]	1.5 mm	1.5 - 2 mm
Viewing Angle	150 °, 168 °	140 - 168 °
Viewing Angle [custom]	140 °	140 °
Viewing Angle [custom]	139 °	139 °
Voltage - Forward (Vf) (Typ)	1.7 V, 2.1 V	1.7 - 2.1 V
Wavelength - Dominant	647 nm, 567 nm	567 - 647 nm
Wavelength - Peak [custom]	660 nm	660 nm
Wavelength - Peak [custom]	560 nm	560 nm

LED GREEN/RED DIFFUSED SMD

Part	Viewing Angle	Lens Style	Package / Case	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Lens Size [x]	Lens Size [y]	Current - Test	Lens Transparency	Wavelength - Dominant	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Mounting Type	Configuration	Voltage - Forward (Vf) (Typ)	Package / Case	Viewing Angle [custom]	Viewing Angle [custom]
Stanley Electric Co BRPG1211F-TR	140 °, 143 °, 149 °, 150 °	Rectangle with Domed Top	2-SMD, No Lead	White	2 mm	3 mm	1 mm	2 mm	1 mm	20 mA, 20 mA	Diffused	567 nm, 647 nm	660 nm	560 nm	5.2 mcd	17.6 mcd	Green, Red	Surface Mount	Common Anode	1.7 V, 2.1 V
Stanley Electric Co BRPG1211C-TR	150 °, 168 °	Rectangle with Flat Top		White	1.5 mm	1.6 mm	0.8 mm	1.1 mm	1.5 mm	20 mA, 20 mA	Diffused	567 nm, 647 nm	660 nm	560 nm	6.4 mcd	11.7 mcd	Green, Red	Surface Mount	Independent	1.7 V, 2.1 V	0606, 1616 Metric	140 °	139 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green, Red 567nm Green, 647nm Red LED Indication - Discrete 2.1V Green, 1.7V Red 0606 (1616 Metric)
