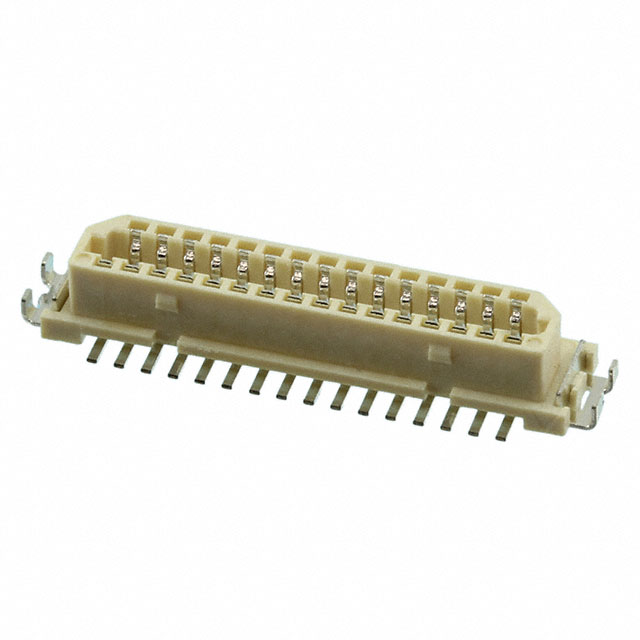

M40-6203146R

Active

Harwin Inc.

BOARD CONNECTOR, 31 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, SOCKET, LEAD FREE

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 31 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, SOCKET, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Specification	M40-6203146R

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Tin
Contact Finish Thickness	80 Áin
Contact Finish Thickness	2.03 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights [z]	4.3 mm
Mounting Type	Surface Mount
Number of Positions	31
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Number of Positions	Mounting Type	Connector Type	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights [z]
Harwin Inc. M40-6202146R	21	Surface Mount	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	2	80 Áin	2.03 Ám	0.13 in	3.3 mm	0.039 in	1 mm	Tin	4.3 mm
Harwin Inc. M40-6202546R		Surface Mount	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	2	80 Áin	2.03 Ám	0.13 in	3.3 mm	0.039 in	1 mm	Tin	4.3 mm
Harwin Inc. M40-6204146R	41	Surface Mount	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	2	80 Áin	2.03 Ám	0.13 in	3.3 mm	0.039 in	1 mm	Tin	4.3 mm
Harwin Inc. M40-6203146R	31	Surface Mount	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	2	80 Áin	2.03 Ám	0.13 in	3.3 mm	0.039 in	1 mm	Tin	4.3 mm
Harwin Inc. M40-6205146	51	Surface Mount	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	2	80 Áin	2.03 Ám	0.13 in	3.3 mm	0.039 in	1 mm	Tin	4.3 mm
Harwin Inc. M40-6204146	41	Surface Mount	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	2	80 Áin	2.03 Ám	0.13 in	3.3 mm	0.039 in	1 mm	Tin	4.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin
