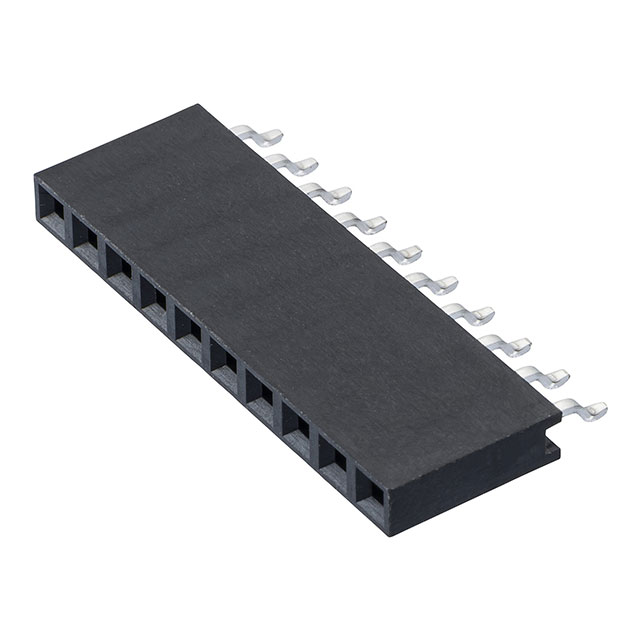

Specification	M22-6541042R

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.59 µin
Contact Finish Thickness - Post	80 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Material	Glass Filled, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.079 in
Style	Board
Termination	Solder

M22-654 Series

Part	Insulation Height	Insulation Color	Contact Finish - Mating	Style	Number of Rows	Contact Type	Number of Positions	Connector Type	Pitch - Mating	Current Rating	Fastening Type	Number of Positions Loaded	Termination	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Applications	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post
Harwin Inc. M22-6540442R	0.079 in	Black	Gold	Board	1	Forked	4	Receptacle	0.079 in	2 A	Push-Pull	All	Solder	Right Angle Surface Mount	-40 °C	105 °C	UL94 V-0	Tin	0.59 µin	General Purpose	Square	Glass Filled Liquid Crystal Polymer (LCP)	Phosphor Bronze	80 µin
Harwin Inc. M22-6541042R	0.079 in	Black	Gold	Board	1	Forked	10	Receptacle	0.079 in	2 A	Push-Pull	All	Solder	Right Angle Surface Mount	-40 °C	105 °C	UL94 V-0	Tin	0.59 µin	General Purpose	Square	Glass Filled Liquid Crystal Polymer (LCP)	Phosphor Bronze	80 µin
Harwin Inc. M22-6540642R	0.079 in	Black	Gold	Board	1	Forked	6	Receptacle	0.079 in	2 A	Push-Pull	All	Solder	Right Angle Surface Mount	-40 °C	105 °C	UL94 V-0	Tin	0.59 µin	General Purpose	Square	Glass Filled Liquid Crystal Polymer (LCP)	Phosphor Bronze	80 µin
Harwin Inc. M22-6540842R	0.079 in	Black	Gold	Board	1	Forked	8	Receptacle	0.079 in	2 A	Push-Pull	All	Solder	Right Angle Surface Mount	-40 °C	105 °C	UL94 V-0	Tin	0.59 µin	General Purpose	Square	Glass Filled Liquid Crystal Polymer (LCP)	Phosphor Bronze	80 µin
