MS3126E14-19S

Active

ITT Cannon, LLC

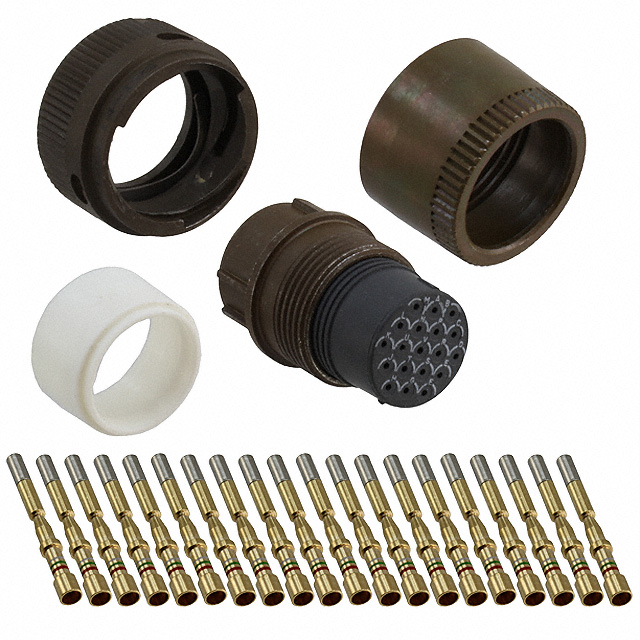

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3126 SERIES, STRAIGHT PLUG, 19 CONTACTS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3126 SERIES, STRAIGHT PLUG, 19 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	MS3126E14-19S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Termination	Crimp
Voltage Rating	600 VAC, 850 V

Part	Current Rating (Amps)	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Material	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Color	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Fastening Type	Mounting Type	Voltage Rating	Shell Finish	Ingress Protection	Contact Finish - Mating
ITT Cannon, LLC MS3126E14-19S	7.5 A	Metal	1.27 µm	50 µin	N	Aluminum Alloy	19	14	Olive Drab	Backshell	Crimp	-55 °C	125 °C	19	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	600 VAC 850 V	Olive Drab Cadmium	Environment Resistant	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Plug, Female Sockets Crimp
