P200-010S

Active

CarlisleIT

PROBE KIT,1X&10X 250MHZ,CATII

Search across all available documentation for this part.

Active

CarlisleIT

PROBE KIT,1X&10X 250MHZ,CATII

Technical Specifications

Parameters and characteristics for this part

Specification	P200-010S

Attenuation Value [custom]	1:1, 10:1
Bandwidth	200 MHz, 10 MHz
Capacitance - Input	110 pF, 15 pF
Color	Black

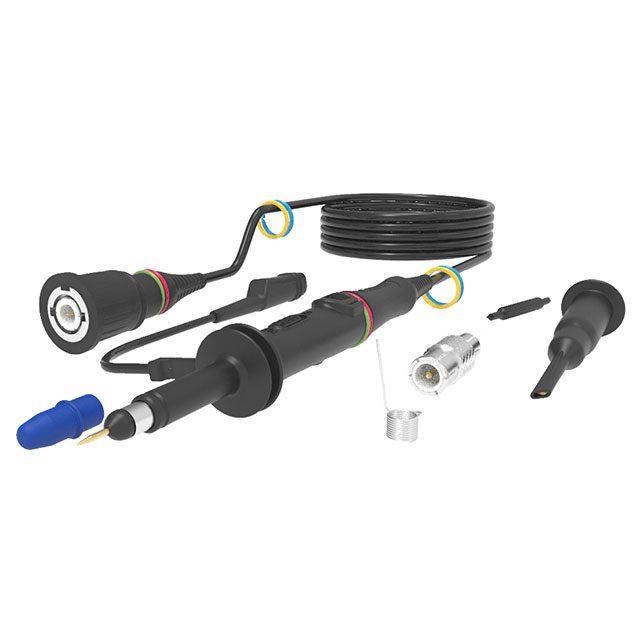

Includes	Probe, Manual, BNC Adapter, Grabber Hook, Ground Spring, Screw Driver, Insulating Cap, Ground Leads
Resistance - Input	10 M, 1 M
Type	Passive

PROBE KIT,1X&10X 250MHZ,CATII

Part	Bandwidth	Capacitance - Input	Includes	Resistance - Input	Type	Color	Attenuation Value [custom]
CarlisleIT P200-010S	10 MHz, 200 MHz	15 pF, 110 pF	BNC Adapter, Grabber Hook, Ground Leads, Ground Spring, Insulating Cap, Manual, Probe, Screw Driver	1 M, 10 M	Passive	Black	1:1, 10:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1:1, 10:1 Passive 10MHz, 200MHz Black Oscilloscope Probe Test Lead 1M, 10M Input Resistance CAT II 150V, CAT II 300V
