Technical Specifications
Parameters and characteristics for this part
| Specification | 2183P 010A250 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.6 mm |
| Jacket (Insulation) Diameter [diameter] | 0.26 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket Color | Black |
| Length | 3000 " |
| Length | 76.2 m |
| Number of Conductors | 8 |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | 4K UHD HDbase-T, PoE |
| Voltage | 300 V |
| Wire Gauge | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2183P Series

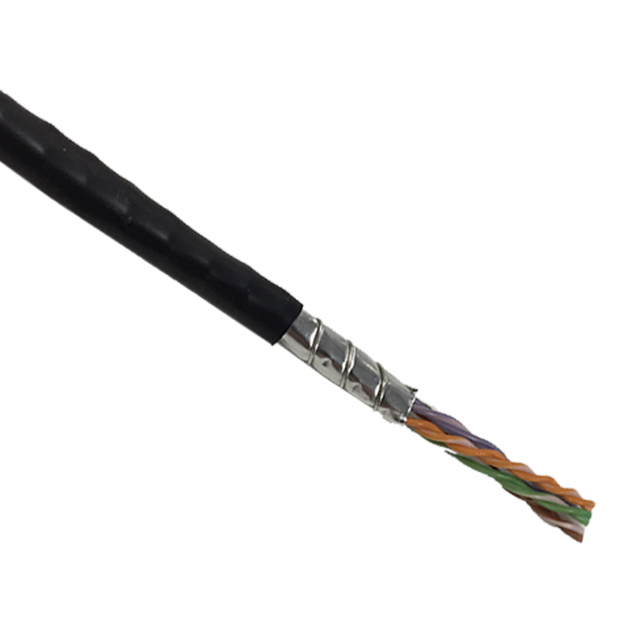

8 (4 Pair) Conductor Multi-Pair Cable Black 23 AWG Foil 250.0' (76.2m)
Documents
Technical documentation and resources
