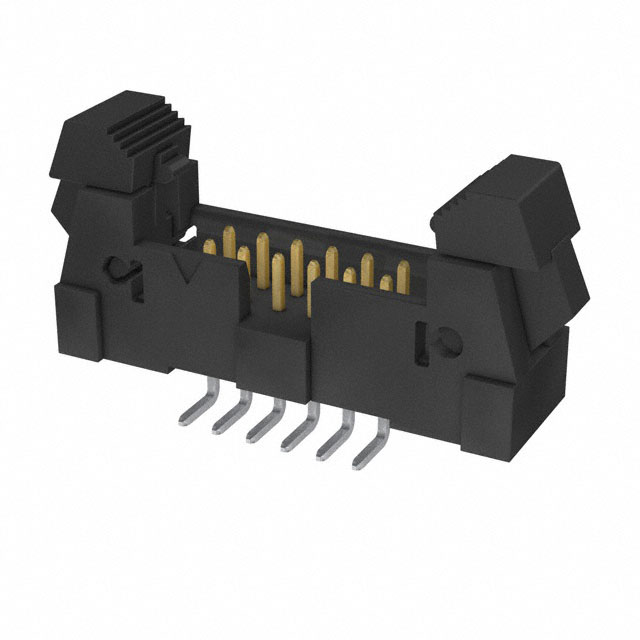

EHT-106-01-L-D-SM

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 12 POS 2MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

EHT-106-01-L-D-SM

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 12 POS 2MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-106-01-L-D-SM

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-106 Series

Part	Contact Type	Insulation Height	Insulation Height	Number of Positions	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Contact Material	Connector Type	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Style	Number of Positions Loaded	Termination	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Shrouding	Features	Contact Length - Post	Contact Length - Post
Samtec Inc. EHT-106-01-S-D-SM-P-TR	Male Pin	0.37 in	9.4 mm	12	2	30 Áin	0.76 Ám	Gold	Surface Mount	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot Pick and Place
Samtec Inc. EHT-106-01-F-D-SM-SR	Male Pin	0.37 in	9.4 mm	12	2	3 µin	0.076 µm	Gold	Surface Mount	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot Strain Relief
Samtec Inc. EHT-106-01-SM-D	Male Pin	0.37 in	9.4 mm	12	2	30 Áin	0.76 Ám	Gold	Through Hole	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot	0.114 in	2.9 mm
Samtec Inc. EHT-106-01-S-D-SR	Male Pin	0.37 in	9.4 mm	12	2	30 Áin	0.76 Ám	Gold	Through Hole	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot Strain Relief	0.114 in	2.9 mm
Samtec Inc. EHT-106-01-S-D	Male Pin	0.37 in	9.4 mm	12	2	30 Áin	0.76 Ám	Gold	Through Hole	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot	0.114 in	2.9 mm
Samtec Inc. EHT-106-01-S-D-SM-TR	Male Pin	0.37 in	9.4 mm	12	2	30 Áin	0.76 Ám	Gold	Surface Mount	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot
Samtec Inc. EHT-106-01-L-D-SM-LC	Male Pin	0.37 in	9.4 mm	12	2	15 µin	0.38 µm	Gold	Surface Mount	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Board Lock Keying Slot
Samtec Inc. EHT-106-01-L-D-SM	Male Pin	0.37 in	9.4 mm	12	2	15 µin	0.38 µm	Gold	Surface Mount	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot
Samtec Inc. EHT-106-01-L-D	Male Pin	0.37 in	9.4 mm	12	2	15 µin	0.38 µm	Gold	Through Hole	Phosphor Bronze	Header	3 A	0.079 in	2 mm	Square	Board to Cable/Wire	All	Solder	3.05 mm	0.12 in	UL94 V-0	Black	-55 °C	125 °C	Tin	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Keying Slot	0.114 in	2.9 mm
