634-062-263-032

Active

EDAC Inc.

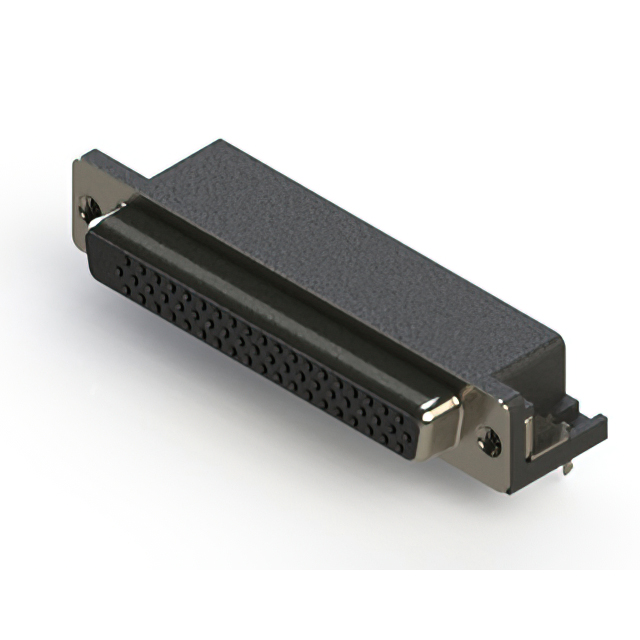

D SUB CONNECTOR, HIGH DENSITY, RECEPTACLE, 634 SERIES, 62 CONTACTS, DC, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

634-062-263-032

Active

EDAC Inc.

D SUB CONNECTOR, HIGH DENSITY, RECEPTACLE, 634 SERIES, 62 CONTACTS, DC, SOLDER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	634-062-263-032

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

634-062 Series

Part	Number of Positions	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Dielectric Material	Mounting Type	Flange Feature	Connector Style	Features	Backset Spacing	Backset Spacing	Connector Type	Number of Rows	Contact Type	Material Flammability Rating	Contact Material	Shell Size, Connector Layout	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish Thickness
EDAC Inc. 634-062-363-012	62	Nickel Plated Steel	85 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	D-Sub High Density	Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold	15 µin	0.38 µm	Solder
EDAC Inc. 634-062-663-541	62	Nickel Plated Steel	125 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (Unthreaded)	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold	30 Áin	0.76 Ám	Solder
EDAC Inc. 634-062-263-052	62	Nickel Plated Steel	85 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	D-Sub High Density	Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold			Solder	Flash
EDAC Inc. 634-062-263-032	62	Nickel Plated Steel	85 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold			Solder	Flash
EDAC Inc. 634-062-263-541	62	Nickel Plated Steel	125 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (Unthreaded)	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold			Solder	Flash
EDAC Inc. 634-062-363-555	62	Nickel Plated Steel	125 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (M3)	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold	15 µin	0.38 µm	Solder
EDAC Inc. 634-062-663-035	62	Nickel Plated Steel	85 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (M3)	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold	30 Áin	0.76 Ám	Solder
EDAC Inc. 634-062-263-535	62	Nickel Plated Steel	125 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Housing/Shell (M3)	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold			Solder	Flash
EDAC Inc. 634-062-663-030	62	Nickel Plated Steel	85 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	4-40	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold	30 Áin	0.76 Ám	Solder
EDAC Inc. 634-062-263-043	62	Nickel Plated Steel	85 °C	-55 °C	3 A	Polyester Thermoplastic	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	D-Sub High Density	Board Lock Mounting Brackets Shielded	8.89 mm	0.35 in	Receptacle Female Sockets	3	Signal	UL94 V-0	Copper Alloy	4	Gold			Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.86
		10	$ 5.32
		25	$ 5.04
		40	$ 4.92
		80	$ 4.69
		240	$ 4.10
		440	$ 3.98
		960	$ 3.40
		2400	$ 3.16
Newark	Each	100	$ 5.56
		250	$ 5.43
		500	$ 5.23

Description

General part information

634-062 Series

62 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
