RA4-2D-AC-2-B

Active

Switch Components

VAC ROUND, DP ON-ON, IP65

Search across all available documentation for this part.

Active

Switch Components

VAC ROUND, DP ON-ON, IP65

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

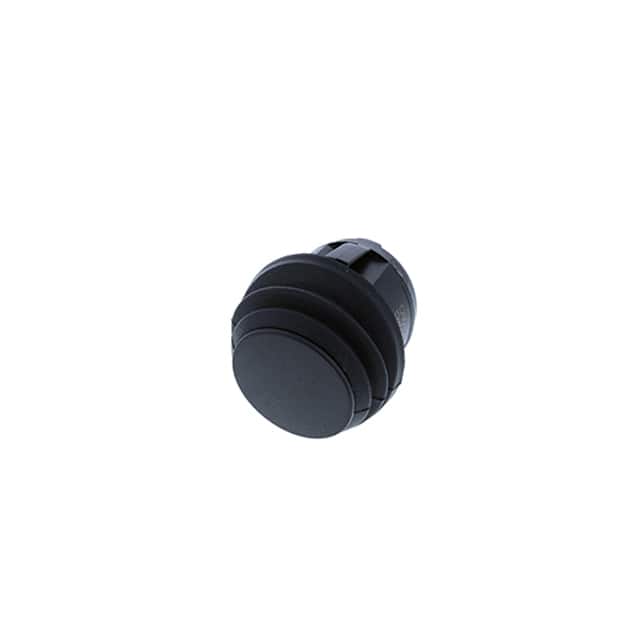

Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RA4-2D-AC-2-B	RA4-2D Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round	Round
Approval Agency	cURus, ENEC	cURus, ENEC
Circuit	DPDT	DPDT
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	10 A	10 - 16 A
Electrical Life	-	6000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	-	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-On	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	-	28 V

VAC ROUND, DP ON-ON, IP65

Part	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Voltage Rating - AC	Actuator Marking	Current Rating (Amps)	Switch Function	Actuator Type	Color - Actuator/Cap	Ingress Protection	Termination Style	Panel Cutout Dimensions [diameter]	Mounting Type	Mechanical Life	Voltage Rating - DC	Electrical Life
Switch Components RA4-2D-AC-2-B	cURus, ENEC	-25 °C	85 °C	DPDT	125 V	No Marking	10 A	On-On	Round	Black	IP65 - Dust Tight, Water Resistant	Quick Connect - 0.187" (4.7mm)	20.2 mm	Panel Mount, Snap-In
Switch Components RA4-2D-DC-2-B	cURus, ENEC	-25 °C	85 °C	DPDT	125 V	No Marking	10 A, 16 A	On-On	Round	Black	IP65 - Dust Tight, Water Resistant	Quick Connect - 0.187" (4.7mm)	20.2 mm	Panel Mount, Snap-In	10000 Steps	28 V	6000 Cycles
