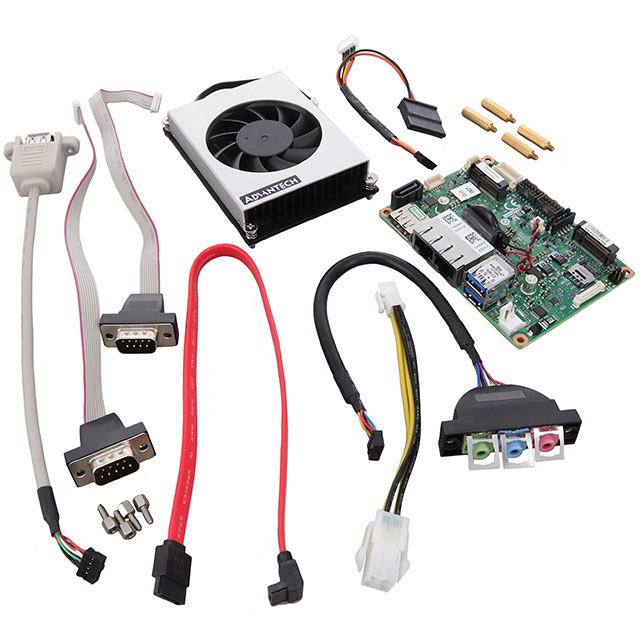

MIO-2375C7P-Q4A1

Active

Advantech Corp

SBC 4.4GHZ 4 CORE 16GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 4.4GHZ 4 CORE 16GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	MIO-2375C7P-Q4A1

Cooling Type	Fan
Core Processor	Intel Core i7-1185G7E
Digital I/O Lines	4
Ethernet	1000 Mbps, 10 Mbps, 100 Mbps
Ethernet	RJ45 (2), GbE (2)
Expansion Site/Bus	PCIe, M.2, SMBus, I2C
Form Factor	SBC, Pico-ITX
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	15 W
RAM Capacity/Installed	16 GB, 0 GB
RS-232 (422, 485)	2
Size / Dimension [x]	3.9 "
Size / Dimension [x]	99.06 mm
Size / Dimension [y]	2.8 in
Size / Dimension [y]	71.12 mm
Speed	4.4 GHz
Storage Interface	M.2, SATA III
USB	USB 2.0 (2), USB 3.2 (2)
Video Outputs	LCD, HDMI, VGA, eDP, MIPI-DSI, DP, Multi-Display
Watchdog Timer	True

Part	Ethernet	Ethernet	Digital I/O Lines	Watchdog Timer	Power (Watts)	Number of Cores	Expansion Site/Bus	Cooling Type	RS-232 (422, 485)	Speed	Form Factor	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	USB	RAM Capacity/Installed	Storage Interface	Video Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Advantech Corp MIO-2375C7P-Q4A1	10 Mbps 100 Mbps 1000 Mbps	GbE (2) RJ45 (2)	4		15 W	4	I2C M.2 PCIe SMBus	Fan	2	4.4 GHz	Pico-ITX SBC	Intel Core i7-1185G7E	60 °C	0 °C	USB 2.0 (2) USB 3.2 (2)	0 GB 16 GB	M.2 SATA III	DP eDP HDMI LCD MIPI-DSI Multi-Display VGA	2.8 in	71.12 mm	3.9 "	99.06 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2088.00

General part information

Single Board Computer 4.4GHz 4 Core 16GB/0GB RAM Intel Core i7-1185G7E

Technical documentation and resources

No documents available
