SFV24R-1STE1HLF

Active

Amphenol ICC (FCI)

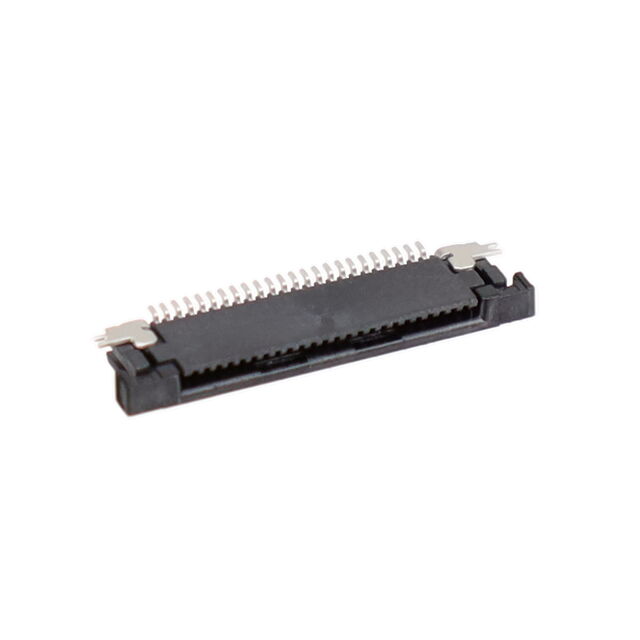

CONN FFC BOTTOM 24POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFV21R-1STE1HLF SFV31R-2STBE1HLF +2

SFV24R-1STE1HLF

Active

Amphenol ICC (FCI)

CONN FFC BOTTOM 24POS 0.5MM R/A

Deep-Dive with AI

DocumentsSFV21R-1STE1HLF SFV31R-2STBE1HLF +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV24R-1STE1HLF

Actuator Color	Brown
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV24R Series

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Mounting Type	Mating Cycles	FFC, FCB Thickness	Number of Positions	Locking Feature	Current Rating (Amps)	Voltage Rating	Termination	Cable End Type	Flat Flex Type	Contact Finish	Height Above Board	Height Above Board	Actuator Material	Material Flammability Rating	Actuator Color	Housing Color	Pitch [x]	Pitch [x]	Connector/Contact Type	Features	FFC, FCB Thickness [z]
Amphenol ICC (FCI) SFV24R-4STBE1HLF	Phosphor Bronze	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	20	0.33 mm	24	Slide Lock	0.5 A	50 V	Solder	Tapered	FPC	Gold	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	UL94 V-0	Black	Black	0.5 mm	0.02 in	Contacts Top
Amphenol ICC (FCI) SFV24R-1STE1LF	Phosphor Bronze	105 ░C	-55 °C	Polyamide (PA) Nylon Glass Filled	Surface Mount Right Angle			24	Slide Lock	0.5 A	50 V	Solder	Straight Tapered	FFC FPC	Tin	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	Black	0.5 mm	0.02 in	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV24R-1STAE1HLF	Phosphor Bronze	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	20		24	Slide Lock	0.5 A	50 V	Solder	Straight Tapered	FFC FPC	Gold	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	UL94 V-0	Black	Black	0.5 mm	0.02 in	Contacts Bottom		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV24R-1STE1HLF	Phosphor Bronze	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	20		24	Slide Lock	0.5 A	50 V	Solder	Notched	FFC FPC	Tin	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	UL94 V-0	Brown	Black	0.5 mm	0.02 in	Contacts Bottom		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV24R-1STBE1HLF	Phosphor Bronze	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	20	0.3 mm	24	Slide Lock	0.5 A	50 V	Solder	Tapered	FFC FPC	Gold	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	UL94 V-0	Black	Black	0.5 mm	0.02 in	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV24R-2STBE5HLF	Phosphor Bronze	105 ░C	-55 °C	Polyamide (PA) Nylon Glass Filled Halogen Free	Surface Mount Right Angle	20		24	Slide Lock	0.5 A	50 V	Solder	Straight Tapered	FFC FPC	Gold	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	UL94 V-0	Black	Black	0.5 mm	0.02 in	Contacts Top	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV24R-4STE1HLF	Phosphor Bronze	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	20	0.33 mm	24	Slide Lock	0.5 A	50 V	Solder	Tapered	FPC	Tin	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	UL94 V-0	Black	Black	0.5 mm	0.02 in	Contacts Top
Amphenol ICC (FCI) SFV24R-2STE1	Phosphor Bronze	105 ░C	-55 °C	Polyamide (PA) Nylon Glass Filled	Surface Mount Right Angle	20		24	Slide Lock	0.5 A	50 V	Solder	Straight Tapered	FFC FPC	Tin Alloy	1.8 mm	0.071 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	Black	0.5 mm	0.02 in	Contacts Top	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
