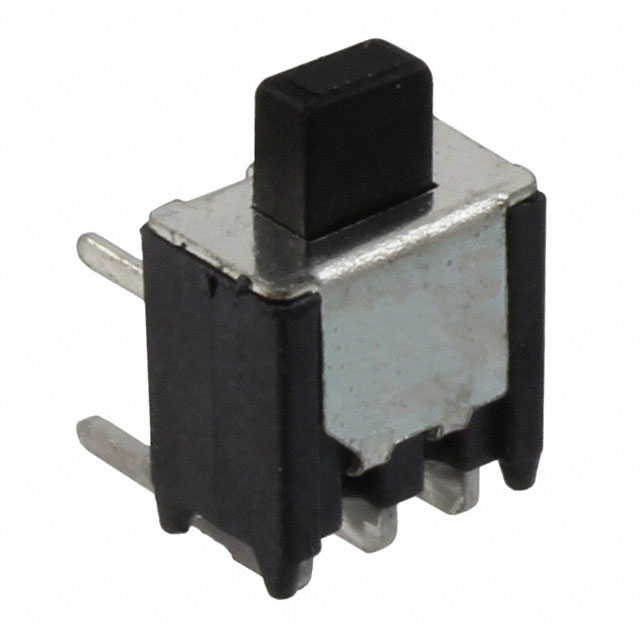

TP11FGRA0

Active

TE Connectivity Raychem Cable Protection

TP11FGRA0=SWITCH P/B MOMENTARY

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

TP11FGRA0=SWITCH P/B MOMENTARY

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Type	Circuit	Voltage Rating - AC	Electrical Life	Voltage Rating - DC	Switch Function	Termination Style	Actuator Marking	Actuator Type	Current Rating (Amps)	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection TP11CGPC2	Through Hole	Standard	SPST-NO	20 V	100000 Cycles	20 V	Off-Mom	PC Pin	No Marking	Plunger Rectangular	0.4 VA	Red	65 °C	-30 ░C
TE Connectivity Raychem Cable Protection TP11CGRA2	Through Hole Right Angle	Standard	SPST-NO	20 V	100000 Cycles	20 V	Off-Mom	PC Pin	No Marking	Plunger Rectangular	0.4 VA	Red	65 °C	-30 ░C
TE Connectivity Raychem Cable Protection TP11FGRA2	Through Hole Right Angle	Standard	SPDT	20 V	100000 Cycles	20 V	On-Mom	PC Pin	No Marking	Plunger Rectangular	0.4 VA	Red	65 °C	-30 ░C
TE Connectivity Raychem Cable Protection TP11FGRA0	Through Hole Right Angle	Standard	SPDT	20 V	100000 Cycles	20 V	On-Mom	PC Pin	No Marking	Plunger Rectangular	0.4 VA	Black	65 °C	-30 ░C
TE Connectivity Raychem Cable Protection TP11FGPC2	Through Hole	Standard	SPDT	20 V	100000 Cycles	20 V	On-Mom	PC Pin	No Marking	Plunger Rectangular	0.4 VA	Red	65 °C	-30 ░C
TE Connectivity Raychem Cable Protection TP11CGPC0	Through Hole	Standard	SPST-NO	20 V	100000 Cycles	20 V	Off-Mom	PC Pin	No Marking	Plunger Rectangular	0.4 VA	Black	65 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 7.04

General part information

General Purpose Push Button Switch, Single Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Extended Actuator, Non-Tactile Feedback
