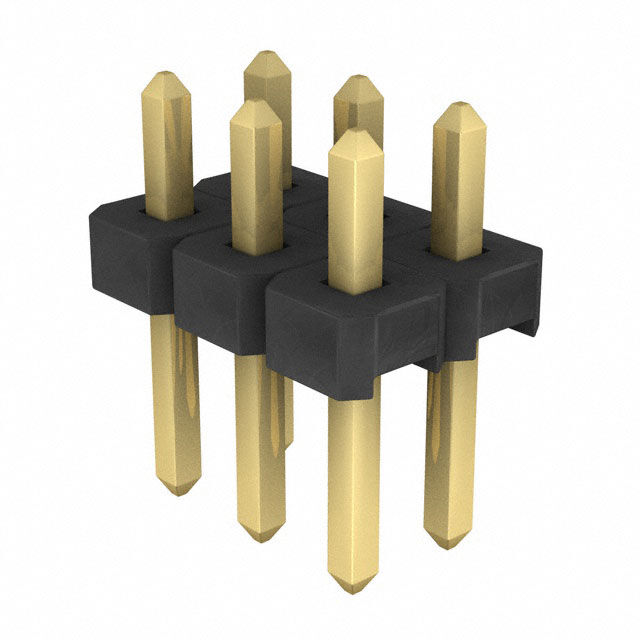

TLW-103-05-G-D

Active

Samtec Inc.

5.2A STRAIGHT GOLD 6P -55℃~+125℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

TLW-103-05-G-D

Active

Samtec Inc.

5.2A STRAIGHT GOLD 6P -55℃~+125℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLW-103-05-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TLW-103 Series

Part	Termination	Insulation Material	Contact Finish - Post	Connector Type	Pitch - Mating	Pitch - Mating	Fastening Type	Mounting Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Shrouding	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Material	Contact Finish - Mating	Insulation Color	Contact Type	Insulation Height	Insulation Height	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Number of Positions Loaded [custom]	Number of Positions Loaded
Samtec Inc. TLW-103-05-F-S	Solder	Liquid Crystal Polymer (LCP)	Tin	Header	0.1 in	2.54 mm	Push-Pull	Through Hole	5.2 A	4.32 mm	0.17 in	All	Unshrouded	Square	-55 °C	125 °C	8.51 mm	0.335 in	0.06 in	1.52 mm	1	3 µin	0.076 µm	Board to Board Cable	Phosphor Bronze	Gold	Black	Male Pin
Samtec Inc. TLW-103-01-T-D-RA	Solder	Liquid Crystal Polymer (LCP)	Tin	Header	0.1 in	2.54 mm	Push-Pull	Through Hole Right Angle	5.2 A			All	Unshrouded	Square	-55 °C	105 ░C					2			Board to Board Cable	Phosphor Bronze		Black	Male Pin	0.197 in	5 mm	6	0.12 in	3.05 mm	0.23 in	5.84 mm	2.54 mm	0.1 in
Samtec Inc. TLW-103-05-G-D	Solder	Liquid Crystal Polymer (LCP)	Gold	Header	0.1 in	2.54 mm	Push-Pull	Through Hole	5.2 A	4.32 mm	0.17 in	All	Unshrouded	Square	-55 °C	125 °C	8.51 mm	0.335 in	0.06 in	1.52 mm	2	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Gold	Black	Male Pin			6					2.54 mm	0.1 in	Flash
Samtec Inc. TLW-103-06-G-D-06	Solder	Liquid Crystal Polymer (LCP)	Gold	Header	0.1 in	2.54 mm	Push-Pull	Through Hole	5.2 A				Unshrouded	Square	-55 °C	125 °C	7.62 mm	0.3 in	0.06 in	1.52 mm	2	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Gold	Black	Male Pin			6	0.135 in	3.43 mm			2.54 mm	0.1 in	Flash	5
Samtec Inc. TLW-103-05-G-S	Solder	Liquid Crystal Polymer (LCP)	Gold	Header	0.1 in	2.54 mm	Push-Pull	Through Hole	5.2 A	4.32 mm	0.17 in	All	Unshrouded	Square	-55 °C	125 °C	8.51 mm	0.335 in	0.06 in	1.52 mm	1	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Gold	Black	Male Pin										Flash
Samtec Inc. TLW-103-05-G-S-01	Solder	Liquid Crystal Polymer (LCP)	Gold	Header	0.1 in	2.54 mm	Push-Pull	Through Hole	5.2 A	4.32 mm	0.17 in		Unshrouded	Square	-55 °C	125 °C	8.51 mm	0.335 in	0.06 in	1.52 mm	1	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Gold	Black	Male Pin										Flash		2
Samtec Inc. TLW-103-01-TM-D-RA	Solder	Liquid Crystal Polymer (LCP)	Tin	Header	0.1 in	2.54 mm	Push-Pull	Through Hole Right Angle	5.2 A			All	Unshrouded	Square	-55 °C	105 ░C					2			Board to Board Cable	Phosphor Bronze		Black	Male Pin	0.197 in	5 mm	6	0.12 in	3.05 mm	0.23 in	5.84 mm	2.54 mm	0.1 in
Samtec Inc. TLW-103-01-S-S-RA	Solder	Liquid Crystal Polymer (LCP)		Header	0.1 in	2.54 mm	Push-Pull	Through Hole Right Angle	5.2 A			All	Unshrouded	Square	-55 °C	125 °C			0.098 in	2.5 mm	1			Board to Board Cable	Phosphor Bronze	Gold	Black	Male Pin				0.12 in	3.05 mm	0.23 in	5.84 mm
Samtec Inc. TLW-103-06-S-D	Solder	Liquid Crystal Polymer (LCP)		Header	0.1 in	2.54 mm	Push-Pull	Through Hole	5.2 A			All	Unshrouded	Square	-55 °C	125 °C	7.62 mm	0.3 in	0.06 in	1.52 mm	2			Board to Board Cable	Phosphor Bronze	Gold	Black	Male Pin			6	0.135 in	3.43 mm			2.54 mm	0.1 in
Samtec Inc. TLW-103-05-T-S	Solder	Liquid Crystal Polymer (LCP)	Tin	Header	0.1 in	2.54 mm	Push-Pull	Through Hole	5.2 A	4.32 mm	0.17 in	All	Unshrouded	Square	-55 °C	105 ░C	8.51 mm	0.335 in	0.06 in	1.52 mm	1			Board to Board Cable	Phosphor Bronze		Black	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.80
Digikey	Bulk	1	$ 1.65
		10	$ 1.41
		100	$ 1.19
		500	$ 1.07
		1000	$ 1.03
		5000	$ 0.77
		10000	$ 0.76
LCSC	Piece	1	$ 2.41
		200	$ 0.96
		500	$ 0.93
		1000	$ 0.91

Description

General part information

TLW-103 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)
