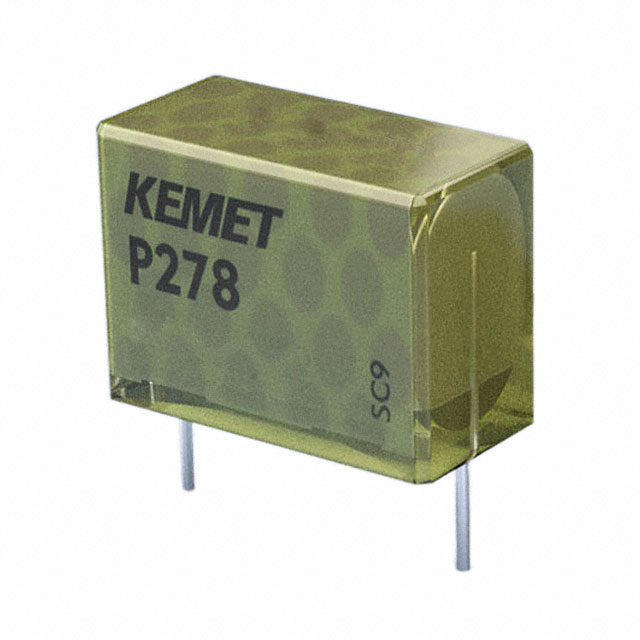

P278QS223M480A
ObsoleteKEMET
CAP FILM 0.022UF 20% 1KVDC RAD
Deep-Dive with AI
Search across all available documentation for this part.
P278QS223M480A
ObsoleteKEMET
CAP FILM 0.022UF 20% 1KVDC RAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P278QS223M480A |
|---|---|
| Applications | EMI, RFI Suppression |
| Capacitance | 0.022 µF |
| Dielectric Material | Paper, Metallized |
| Height - Seated (Max) | 14.3 mm |
| Height - Seated (Max) [Max] | 0.563 in |
| Lead Spacing | 0.598 in |
| Lead Spacing | 15.2 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Ratings | X1 |
| Size / Dimension [x] | 0.728 in |
| Size / Dimension [x] | 18.5 mm |
| Size / Dimension [y] | 8.5 mm |
| Size / Dimension [y] | 0.335 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 480 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
P278QS Series
0.022 µF Film Capacitor 480V 1000V (1kV) Paper, Metallized Radial
