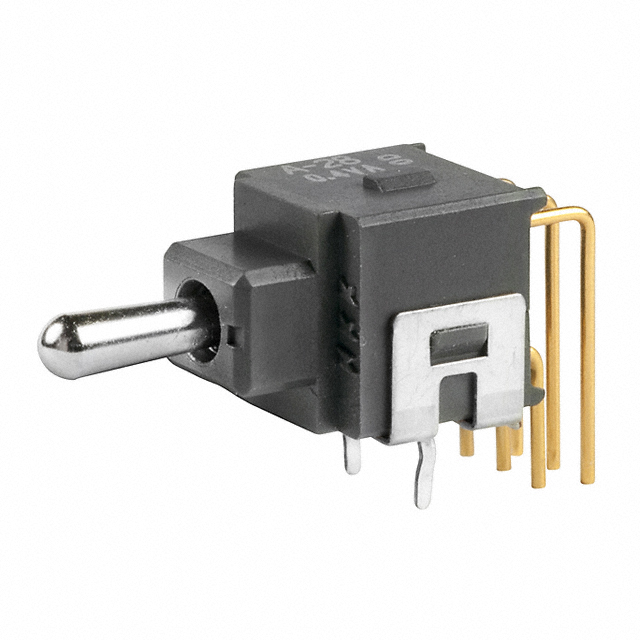

Specification	A28JH/328

Actuator Length	6.3 mm
Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Actuator Type	Standard Round
Bushing Thread	Unthreaded, Square
Circuit	DPDT
Current Rating	0.4 VA
Electrical Life (Cycles)	50000
Features	Low Temperature Lubricant
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

A28JH Series

Part	Actuator Material	Electrical Life (Cycles)	Actuator Type	Voltage Rating - AC	Termination Style	Illumination	Switch Function	Circuit	Features	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Length	Bushing Thread	Voltage Rating - DC	Current Rating	Mounting Type
NKK Switches A28JH/328-JA	Glass Filled Nylon Polyamide (PA)	50000	Standard Round with Cap	28 V	PC Pin	Non-Illuminated	Mom-Off-Mom	DPDT	Black Cap Low Temperature Lubricant	85 °C	-30 °C	6.3 mm	Square Unthreaded	28 V	0.4 VA	Right Angle Through Hole
NKK Switches A28JH/328	Glass Filled Nylon Polyamide (PA)	50000	Standard Round	28 V	PC Pin	Non-Illuminated	Mom-Off-Mom	DPDT	Low Temperature Lubricant	85 °C	-30 °C	6.3 mm	Square Unthreaded	28 V	0.4 VA	Right Angle Through Hole
