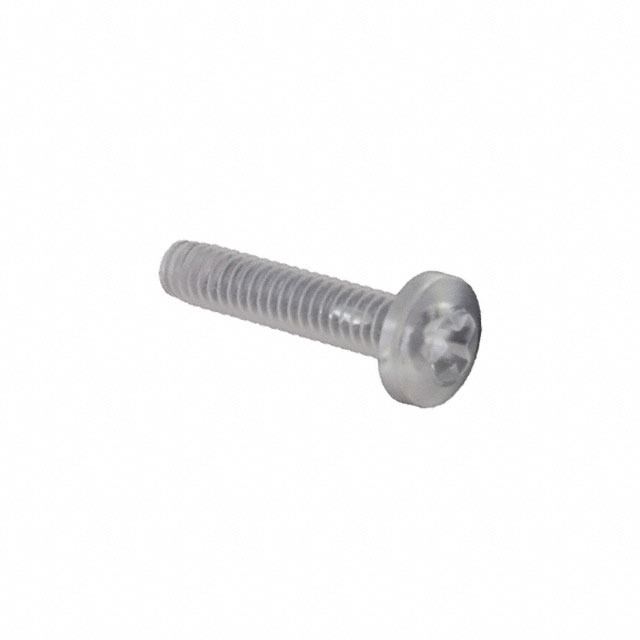

010832W075PC

Active

Essentra Components

PAN PHILLIPS SCREW 8-32 THREAD 3

Search across all available documentation for this part.

Active

Essentra Components

PAN PHILLIPS SCREW 8-32 THREAD 3

Technical Specifications

Parameters and characteristics commom to parts in this series

PAN PHILLIPS SCREW 8-32 THREAD 5

Part	Material	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Thread Size	Drive Type	Screw Head Type	Head Diameter [diameter]	Head Diameter [diameter]	Type	Length - Overall	Length - Overall	Length - Below Head
Essentra Components 010832W062PC	Polycarbonate	0.625 in	15.88 mm	0.625 in	21.46 mm	0.845 "	#8-32	Phillips	Pan Head	0.314 in	7.98 mm	Machine Screw
Essentra Components 010832W050PC	Polycarbonate		12.7 mm	0.5 in			#8-32	Phillips	Pan Head	0.314 in	7.98 mm	Machine Screw	18.29 mm	0.72 "	1/2
Essentra Components 010832W075PC	Polycarbonate	0.75 "	19.05 mm	0.75 "	24.64 mm	0.97 in	#8-32	Phillips	Pan Head	0.314 in	7.98 mm	Machine Screw
Essentra Components 010832W037PC	Polycarbonate	9.53 mm	0.375 "	0.375 "	15.11 mm	0.595 in	#8-32	Phillips	Pan Head	0.314 in	7.98 mm	Machine Screw
Essentra Components 010832W012PC	Polycarbonate	0.125 in	3.18 mm	0.125 in			#8-32	Phillips	Pan Head	0.314 in	7.98 mm	Machine Screw	8.76 mm	0.345 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#8-32 Pan Head Machine Screw Phillips Drive Polycarbonate
