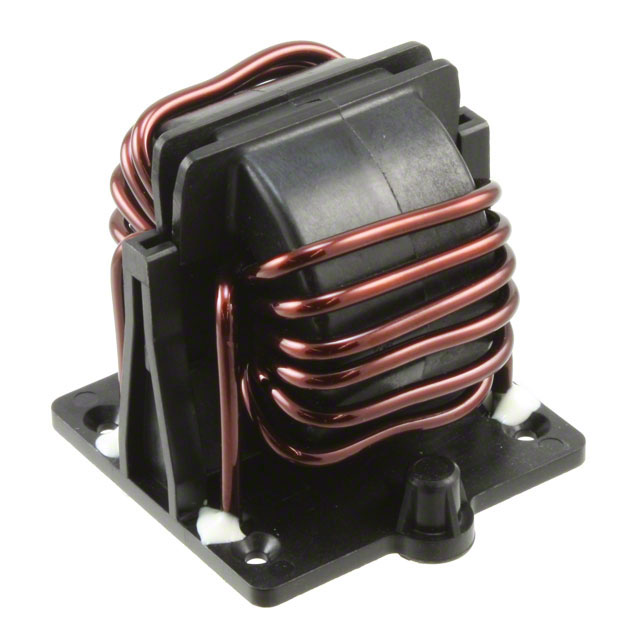

RB6522-25-0M6
ActiveTE Connectivity Raychem Cable Protection
CMC 640UH 25A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB6522-25-0M6
ActiveTE Connectivity Raychem Cable Protection
CMC 640UH 25A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB6522-25-0M6 |
|---|---|
| Current Rating (Max) [Max] | 25 A |
| DC Resistance (DCR) (Max) | 2.6 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 52 mm |
| Height (Max) [Max] | 2.047 in |
| Inductance @ Frequency | 640 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 1.846 in |
| Size / Dimension [x] | 46.9 mm |
| Size / Dimension [y] | 1.772 " |
| Size / Dimension [y] | 45 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.05 | |
| 10 | $ 18.63 | |||
| 25 | $ 17.53 | |||
Description
General part information
RB6522 Series
640 µH @ 400 Hz 2 Line Common Mode Choke Through Hole 25A DCR 2.6mOhm (Typ)
