MPG306F

Active

TE Connectivity Raychem Cable Protection

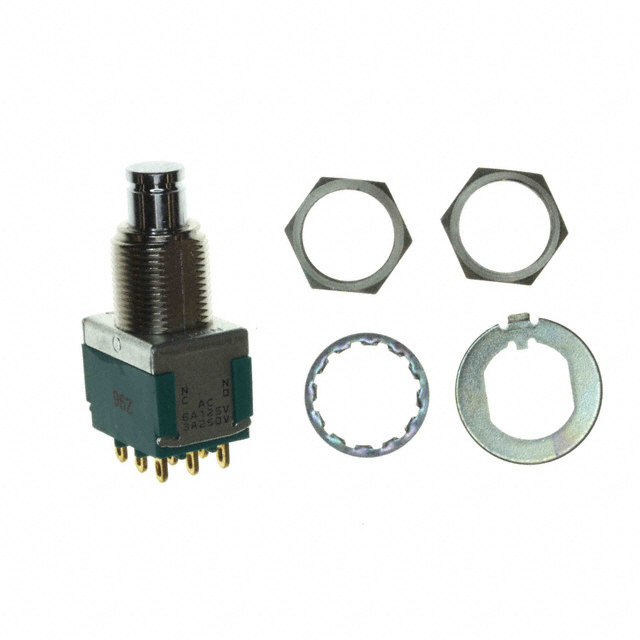

SWITCH PUSHBUTTON 3PDT 6A 125V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON 3PDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MPG306F

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	3PDT
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Circuit	Current Rating (Amps)	Voltage Rating - DC	Actuator Type	Type	Mounting Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Electrical Life	Voltage Rating - AC	Actuator Marking	Switch Function
TE Connectivity Raychem Cable Protection MPG306F	-20 C	80 C	Solder Lug	3PDT	4 A 6 A	28 V	Button Round	Standard	Panel Mount Rear	11.8 mm	Black	50000 Cycles	125 V	No Marking	On-Mom
