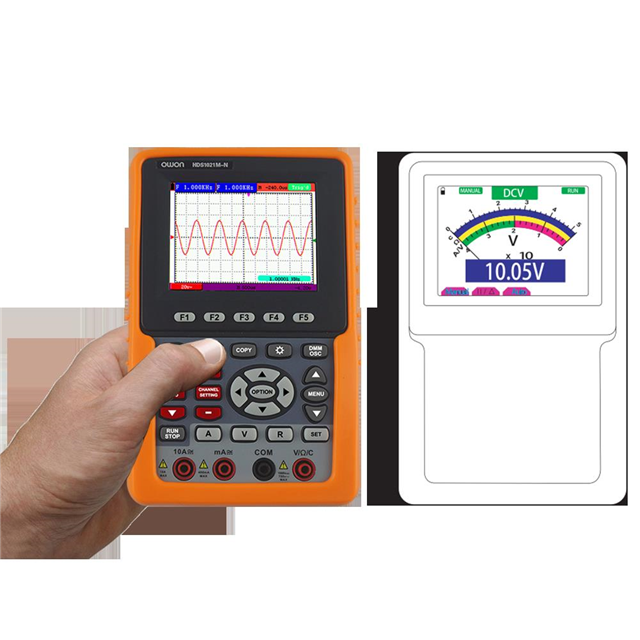

HDS1022M-N

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 20MHZ 2 CH 100MS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 20MHZ 2 CH 100MS/S

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDS1022M-N	HDS1022 Series

Channels	2	2
Display Type	LCD - Color	LCD - Color
Function	-	Record
Includes	Adapter, Probe, Manual, USB Cable, Test Lead, Power Cord	Adapter, Probe, Manual, USB Cable, Test Lead, Power Cord
Input Impedance	-	1 - 15 M
Input Impedance [custom]	20 pF	20 pF
Input Impedance [custom]	1 M	1 M
Interface	USB	USB
Memory Size	6 K Words	6 K Words
Probe Type	Passive 10:1 (2)	Passive 10:1 (2)
Rise Time (Typ)	17.5 ns	17.5 ns
Sampling Rate (Per Second)	100M	100M
Type	Handheld	Handheld
Voltage - Input (Max) [Max]	400 V	400 V
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

O-SCOPE 20MHZ 2 CH 100MS/S

Part	Sampling Rate (Per Second)	Channels	Voltage - Supply [Min]	Voltage - Supply [Max]	Probe Type	Includes	Voltage - Input (Max) [Max]	Rise Time (Typ)	Display Type	Type	Input Impedance [custom]	Input Impedance [custom]	Memory Size	Interface	Input Impedance	Function
Owon Technology Lilliput Electronics (USA) Inc HDS1022M-N	100M	2	100 VAC	240 VAC	Passive 10:1 (2)	Adapter, Manual, Power Cord, Probe, Test Lead, USB Cable	400 V	17.5 ns	LCD - Color	Handheld	20 pF	1 M	6 K Words	USB
Owon Technology Lilliput Electronics (USA) Inc HDS1022M-I	100M	2	100 VAC	240 VAC	Passive 10:1 (2)	Adapter, Manual, Power Cord, Probe, Test Lead, USB Cable	400 V	17.5 ns	LCD - Color	Handheld			6 K Words	USB	1 M, 15 pF	Record

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 499.00

General part information

20 MHz Handheld Oscilloscopes USB Interface LCD - Color Display 2 Channel CAT II 400V Record, Playback
