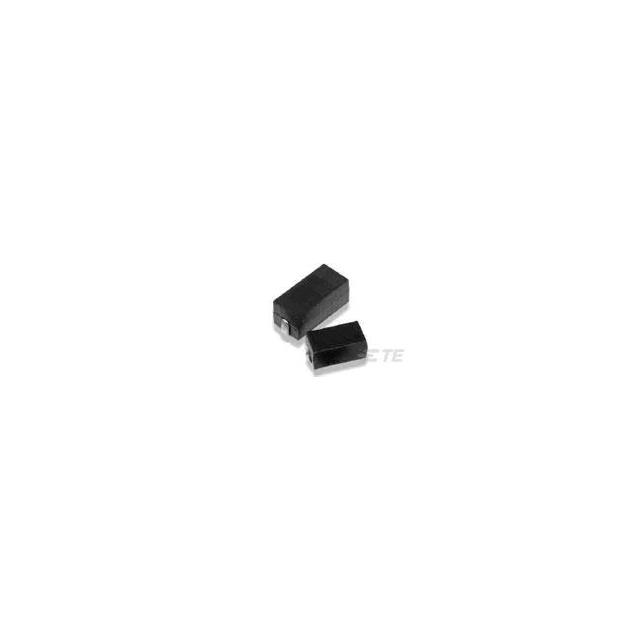

1-1879022-9

Active

TE Connectivity Passive Product

RES 1.8K OHM 5% 3W SMD

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 1.8K OHM 5% 3W SMD

Technical Specifications

Parameters and characteristics for this part

Specification	1-1879022-9

Composition	Metal Film
Features	Safety, Flame Retardant Coating
Height - Seated (Max) [Max] [z]	5.3 mm
Height - Seated (Max) [Max] [z]	0.209 in
Number of Terminations	2
Operating Temperature [Max]	280 °C
Operating Temperature [Min]	-80 °C
Package / Case	10555 Metric
Package / Case	J-Lead, 4122
Power (Watts)	3 W
Resistance	1.8 kOhms
Size / Dimension [x]	10.5 mm, 0.413 in
Size / Dimension [y]	0.217 in, 5.5 mm
Supplier Device Package	SMD
Temperature Coefficient	100 ppm/°C
Tolerance	5 %

Part	Tolerance	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]	Features	Temperature Coefficient	Composition	Resistance	Power (Watts)	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity Passive Product 1-1879022-9	5 %	SMD	0.413 in 10.5 mm	0.217 in 5.5 mm	2	280 °C	-80 °C	Flame Retardant Coating Safety	100 ppm/°C	Metal Film	1.8 kOhms	3 W	10555 Metric	4122 J-Lead	5.3 mm	0.209 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 0.21

General part information

1.8 kOhms ±5% 3W Chip Resistor 4122 (10555 Metric), J-Lead Flame Retardant Coating, Safety Metal Film
