770967-1

Obsolete

TE Connectivity AMP Connectors

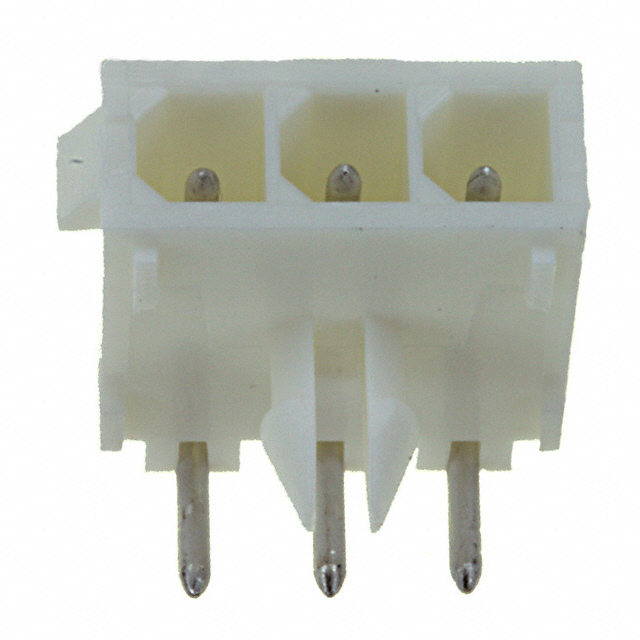

CONN HEADER R/A 3POS 4.14MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HEADER R/A 3POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	770967-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	0.145 in
Contact Length - Post	3.68 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	0.225 in
Insulation Height	5.72 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER R/A 3POS 4.14MM

Part	Material Flammability Rating	Voltage Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Shrouding	Fastening Type	Applications	Contact Shape	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Termination	Connector Type	Style	Contact Material	Contact Type	Contact Finish - Post	Contact Finish - Mating
TE Connectivity AMP Connectors 770967-1	UL94 V-0	600 VAC	0.145 in	3.68 mm	1	85 °C	-20 C	White	Through Hole, Right Angle	0.225 in	5.72 mm	Shrouded - 4 Wall	Locking Ramp	General Purpose	Circular	Varies by Wire Gauge	All	150 Áin	3.81 Ám	150 Áin	3.81 Ám	4.14 mm	0.163 in	Nylon, Polyamide (PA)	Solder	Header	Board to Cable/Wire	Brass	Male Pin	Tin-Lead	Tin-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 3 position 0.163" (4.14mm)
