BJ26-5

Active

Cinch Connectivity Solutions Trompeter

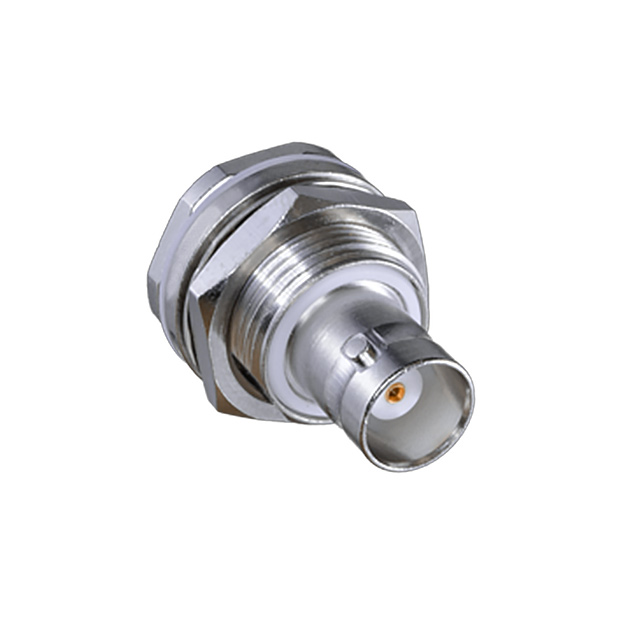

CONN BNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN BNC JACK STR 50OHM SOLDER

Part	Body Material	Includes	Body Finish	Mounting Feature	Center Contact Plating	Cable Group	Connector Type	Impedance	Frequency - Max [Max]	Voltage Rating	Connector Style	Number of Ports	Housing Color	Shield Termination	Contact Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
Cinch Connectivity Solutions Trompeter BJ26-5	Brass	Connector, Nut, Washer	Nickel	Bulkhead - Front Side Nut	Gold	RG-174	Female Socket, Jack	50 Ohms	4 GHz	500 V	BNC	1	Silver	Wrench Clamp	Solder	Bayonet Lock	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter BJ26-5A	Brass	Connector, Nut, Washer	Nickel	Bulkhead - Front Side Nut	Gold	RG-196	Female Socket, Jack	50 Ohms	4 GHz	500 V	BNC	1	Silver	Wrench Clamp	Solder	Bayonet Lock	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
