TJF1052IT/1Y

Obsolete

NXP USA Inc.

DGTL ISOL 1000VRMS 2CH CAN 16SO

Search across all available documentation for this part.

Obsolete

NXP USA Inc.

DGTL ISOL 1000VRMS 2CH CAN 16SO

Technical Specifications

Parameters and characteristics for this part

Specification	TJF1052IT/1Y

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	20 kV/µs
Data Rate	2 Mbps
Inputs - Side 1/Side 2	1/1
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C

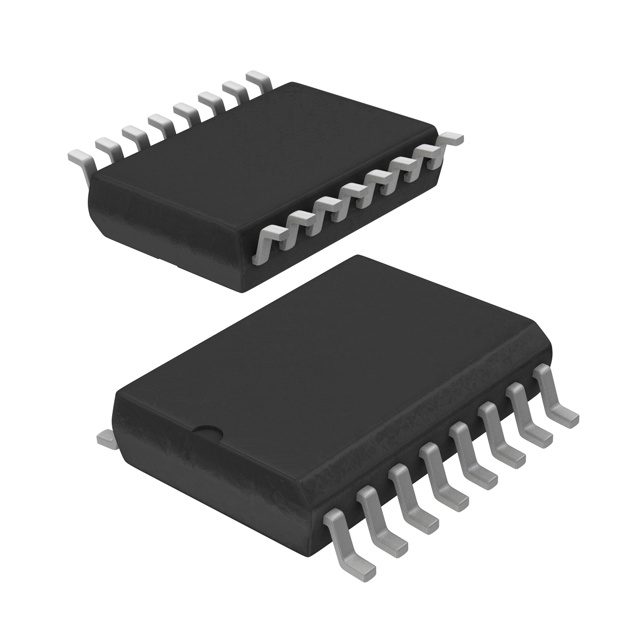

Package / Case	16-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	16-SO
Technology	Capacitive Coupling
Voltage - Isolation	1000 VAC
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	3 V

DGTL ISOL 1000VRMS 2CH CAN 16SO

Part	Isolated Power	Package / Case [x]	Package / Case	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Voltage - Isolation	Channel Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package	Number of Channels [custom]	Technology	Mounting Type	Inputs - Side 1/Side 2
NXP USA Inc. TJF1052IT/1Y		0.295 in	16-SOIC	7.5 mm	-40 °C	105 ░C	2 Mbps	1000 VAC	Unidirectional	5.25 V	3 V	20 kV/µs	16-SO	2	Capacitive Coupling	Surface Mount	1/1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CAN Digital Isolator 1000Vrms 2 Channel 2Mbps 20kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
