Q-2V00D0003003M
ActiveAmphenol Custom Cable

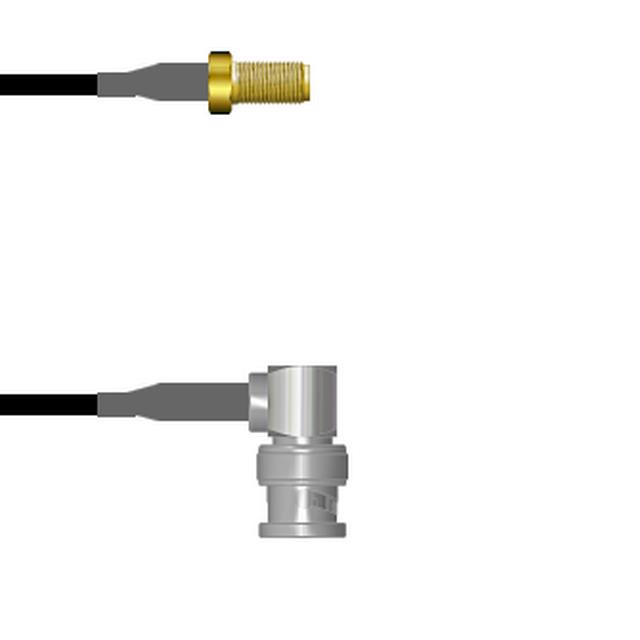

CBL ASSY BNC-SMA PLUG-JACK 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2V00D0003003M
ActiveAmphenol Custom Cable
CBL ASSY BNC-SMA PLUG-JACK 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2V00D0003003M |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 79.79 | |
| 25 | $ 74.30 | |||
| 50 | $ 68.81 | |||
| 100 | $ 64.10 | |||
| 250 | $ 60.17 | |||
Description
General part information
Q-2V00D0 Series
Cable Assembly Coaxial BNC to SMA RG-174 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
