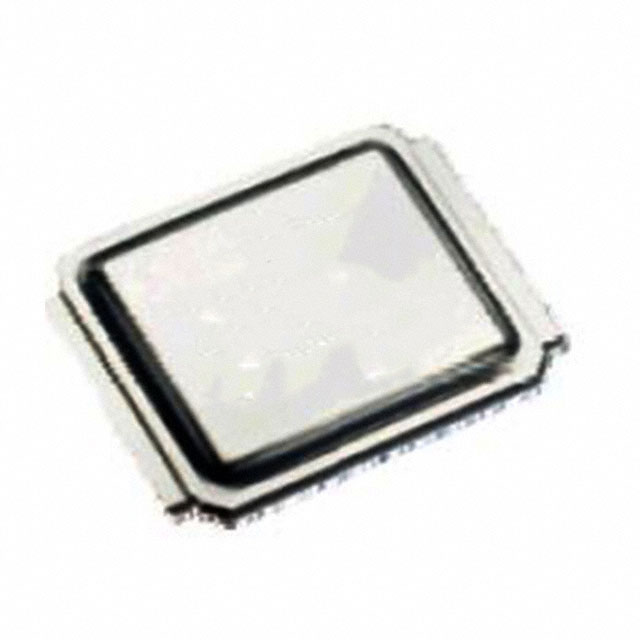

AUIRF7648M2TR

Infineon Technologies

INFINEON’S AUIRF7648M2TR IS A HIGH-PERFORMANCE AUTOMOTIVE MOSFET WITH LOW RDS(ON) AND HIGH CURRENT CAPACITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Search across all available documentation for this part.

AUIRF7648M2TR

Infineon Technologies

INFINEON’S AUIRF7648M2TR IS A HIGH-PERFORMANCE AUTOMOTIVE MOSFET WITH LOW RDS(ON) AND HIGH CURRENT CAPACITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AUIRF7648M2TR

Current - Continuous Drain (Id) @ 25°C	68 A, 14 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	53 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	2170 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	DirectFET™ Isometric M4
Power Dissipation (Max)	63 W, 2.5 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	7 mOhm
Supplier Device Package	DirectFET™ Isometric M4
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id [Max]	4.9 V

AUIRF7648 Series

Part	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	FET Type	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Package / Case	Rds On (Max) @ Id, Vgs	Qualification	Vgs(th) (Max) @ Id [Max]	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Grade	Technology	Mounting Type
Infineon Technologies AUIRF7648M2TR	14 A 68 A	2.5 W 63 W	N-Channel	60 V	-55 °C	175 ░C	2170 pF	20 V	DirectFET™ Isometric M4	7 mOhm	AEC-Q101	4.9 V	10 V	DirectFET™ Isometric M4	53 nC	Automotive	MOSFET (Metal Oxide)	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.48
		10	$ 2.96
		100	$ 2.10
		500	$ 1.73
		1000	$ 1.63
	Digi-Reel®	1	$ 4.48
		10	$ 2.96
		100	$ 2.10
		500	$ 1.73
		1000	$ 1.63
	Tape & Reel (TR)	4800	$ 1.63
Newark	Each (Supplied on Cut Tape)	1	$ 3.40
		10	$ 3.09
		25	$ 2.93
		50	$ 2.74
		100	$ 2.54
		250	$ 2.34
		500	$ 2.14
		1000	$ 1.90

Description

General part information

AUIRF7648 Series

N-Channel 60 V 14A (Ta), 68A (Tc) 2.5W (Ta), 63W (Tc) Surface Mount DirectFET™ Isometric M4

Documents

Technical documentation and resources

No documents available
