5143-K-48

Active

Pomona Electronics

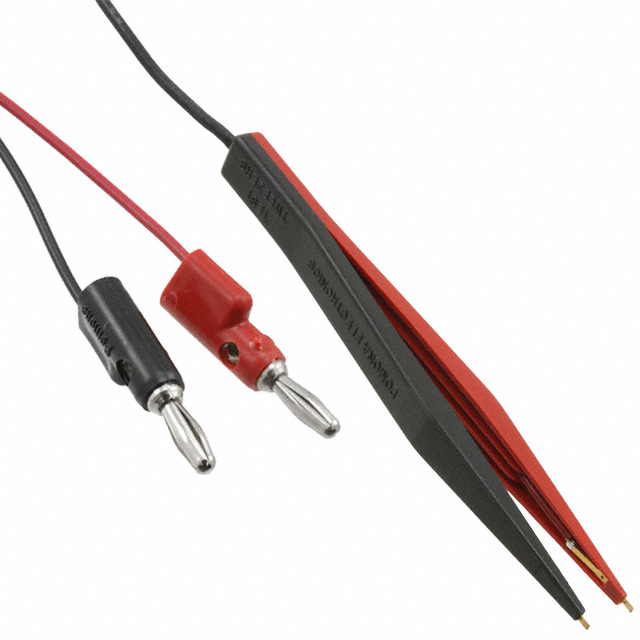

TEST LEAD BANA TO SMD TWEEZ 48"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANA TO SMD TWEEZ 48"

Technical Specifications

Parameters and characteristics for this part

Specification	5143-K-48

1st Connector	Banana Plug, Stackable (2), Single
2nd Connector	SMD Tweezer
Cable Length	48 in
Cable Length	1219.2 mm
Configuration	Banana to SMD Tweezer
Contents	Black and Red Leads, 1 Cable, Black
Current Rating (Amps)	3 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	400 VAC
Wire Gauge	20 AWG
Wire Gauge	RG-174/U

Part	Voltage - Rated	Wire Gauge	Wire Gauge	Contents	Material - Insulation	Stacking Method	Cable Length	Cable Length	2nd Connector	1st Connector	Type	Configuration	Current Rating (Amps)
Pomona Electronics 5143-K-48	400 VAC	20 AWG	RG-174/U	1 Cable Black Black and Red Leads	Poly-Vinyl Chloride (PVC)	Front and Vertical Multi-Stacking	48 in	1219.2 mm	SMD Tweezer	Banana Plug Single Stackable (2)	Patch Cord	Banana to SMD Tweezer	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48.0" (1219.20mm) Banana Plug, Single, Stackable (2) To SMD Tweezer Patch Cord 400VAC
