SMTEG3-01E-Z

Active

Nidec Components Corporation

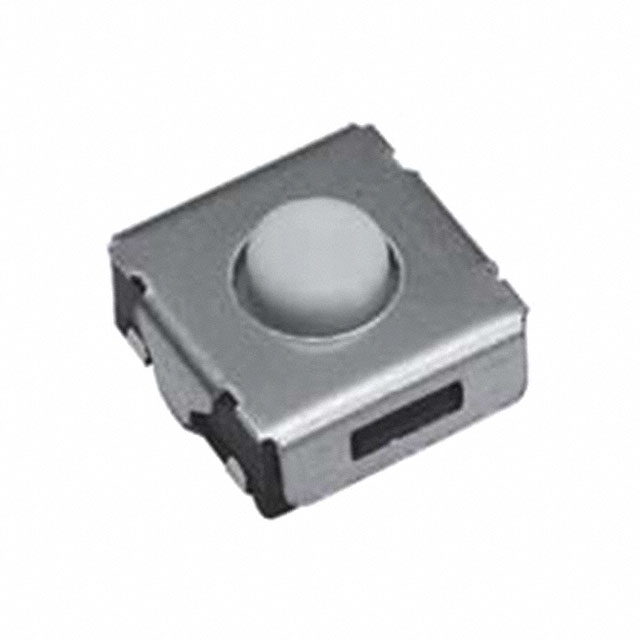

SWITCH TACTILE SPST-NO 0.03A 24V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH TACTILE SPST-NO 0.03A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	SMTEG3-01E-Z

Actuator Height off PCB, Vertical	3.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	24 VDC, 0.03 A
Features	Washable
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	200 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	7 mm
Outline [y]	6.8 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	J Lead

Part	Actuator Orientation	Actuator Type	Mounting Type	Operating Force	Switch Travel	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Actuator Height off PCB, Vertical	Mechanical Life	Termination Style	Contact Rating @ Voltage	Outline [y]	Outline [x]	Features
Nidec Components Corporation SMTEG3-01-Z	Top Actuated	Standard	Surface Mount	200 gf	0.5 mm	Non-Illuminated	70 °C	-25 °C	SPST-NO	Off-Mom	3.5 mm	100000 Cycles	J Lead	0.03 A 24 VDC	6.8 mm	7 mm	Washable
Nidec Components Corporation SMTEG3-01E-Z	Top Actuated	Standard	Surface Mount	200 gf	0.5 mm	Non-Illuminated	70 °C	-25 °C	SPST-NO	Off-Mom	3.5 mm	100000 Cycles	J Lead	0.03 A 24 VDC	6.8 mm	7 mm	Washable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.38

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
