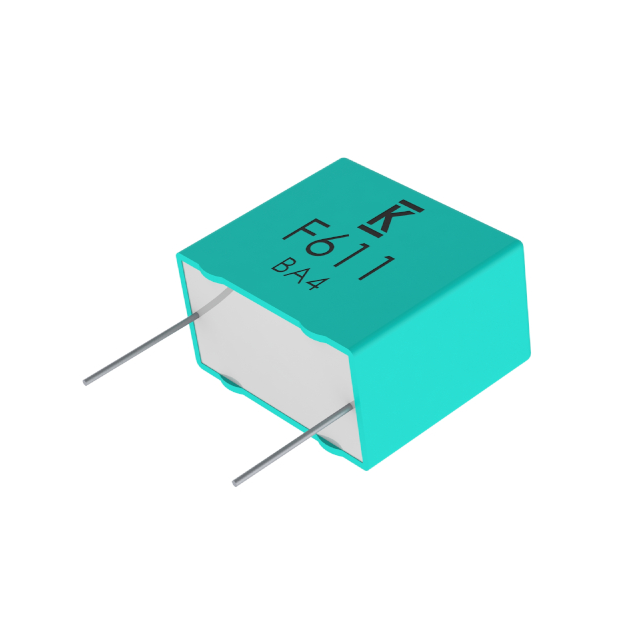

F611DY226K100ZLH0J

Obsolete

KEMET

CAP FILM 22UF 10% 100VDC RADIAL

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 22UF 10% 100VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Dielectric Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - AC	Capacitance	Voltage Rating - DC	Applications	Termination
KEMET F611DY226K100ZLH0J	Radial	0.965 "	24.5 mm	Through Hole	22.5 mm	0.886 in	105 ░C	-55 °C	10 %	Polyester Metallized	0.61 in	15.5 mm	26 mm	1.024 in	63 V	22 µF	100 V	General Purpose	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 µF Film Capacitor 63V 100V Polyester, Metallized Radial
