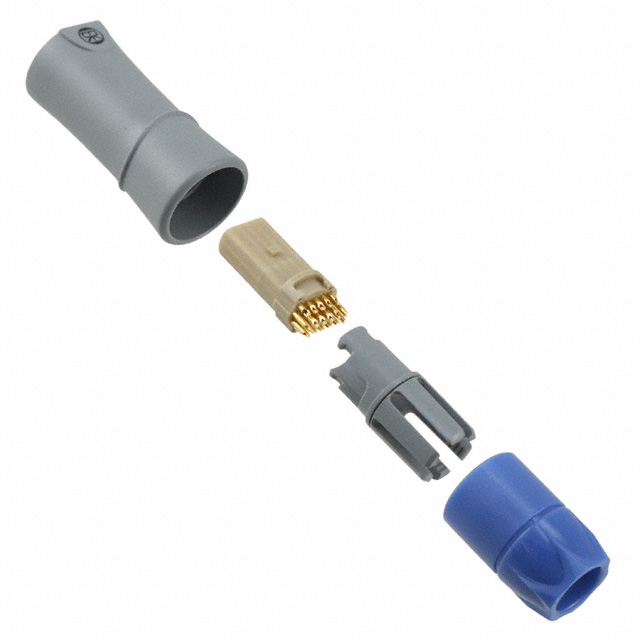

XRN.M22.GLL.6G

Active

LEMO

CONN RCPT FMALE 22P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 22P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRN.M22.GLL.6G	XRN.M22 Series

Applications	Testing Equipment, Medical, Industrial, Measurement	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Sulfone	Sulfone
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 6.5 mm
Color	Gray	Gray, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	22 positions	22 positions
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M22	M22
Shielding	Unshielded	Unshielded

CONN RCPT FMALE 22P SOLDER CUP

Part	Shell Size - Insert	Mounting Type	Primary Material	Features	Ingress Protection	Current Rating (Amps)	Orientation	Number of Positions	Insert Material	Applications	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Connector Type	Shell Material	Fastening Type	Backshell Material, Plating	Color	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
LEMO XRN.M22.GLL.6G	M22	Free Hanging (In-Line)	Plastic	Backshell	IP50	2 A	N	22 positions	Polyetheretherketone (PEEK)	Industrial, Measurement, Medical, Testing Equipment	0.209 in, 0.256 in	5.3 mm, 6.5 mm	-50 °C	170 °C	Unshielded	Receptacle, Female Sockets	Sulfone	Push-Pull	Sulfone	Gray	Gold
LEMO XRN.M22.GLL.6A	M22	Free Hanging (In-Line)	Plastic	Backshell	IP50	2 A	N	22 positions	Polyetheretherketone (PEEK)	Industrial, Measurement, Medical, Testing Equipment	0.209 in, 0.256 in	5.3 mm, 6.5 mm	-50 °C	170 °C	Unshielded	Receptacle, Female Sockets	Sulfone	Push-Pull	Sulfone	Blue, Gray	Gold
LEMO XRN.M22.GLL.5G	M22	Free Hanging (In-Line)	Plastic	Backshell	IP50	2 A	N	22 positions	Polyetheretherketone (PEEK)	Industrial, Measurement, Medical, Testing Equipment			-50 °C	170 °C	Unshielded	Receptacle, Female Sockets	Sulfone	Push-Pull	Sulfone	Gray	Gold	0.157 in	0.205 in	4 mm	5.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Circular Connector Receptacle, Female Sockets Solder Cup
