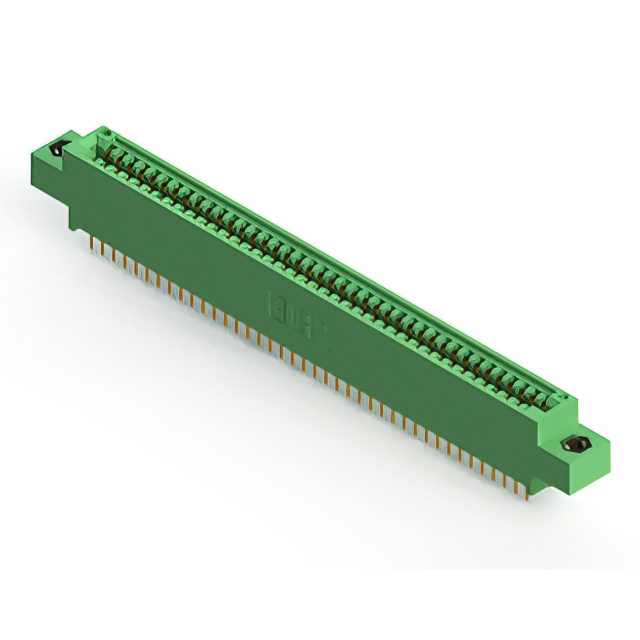

845-080-525-808

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-080-525-808

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-080-525-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-080 Series

...

Part	Termination Rows	Contact Finish	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Color	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Material	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Number of Positions	Mounting Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Card Type	Contact Type	Features	Flange Feature	Flange Feature
EDAC Inc. 845-080-544-504	2	Gold	Wire Wrap	2	125 °C	-40 °C	2.54 mm	0.1 in	Green	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Through Hole	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-080-500-803	2	Gold	Solder Eyelet(s)	2	125 °C	-40 °C	2.54 mm	0.1 in	Green	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Through Hole	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-080-525-808	2	Gold	Solder	2	125 °C	-40 °C	2.54 mm	0.1 in	Green		4-40 Threaded Insert Top Mount Opening		Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Through Hole	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-080-560-812	2	Gold	Solder	2	125 °C	-40 °C	2.54 mm	0.1 in	Green		Side Mount Opening Unthreaded		Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever	Card Extender	3.25 mm	0.128 in
EDAC Inc. 845-080-556-203	2	Gold	Solder	2	125 °C	-40 °C	2.54 mm	0.1 in	Green	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever	Card Extender
EDAC Inc. 845-080-521-808	2	Gold	Solder	2	125 °C	-40 °C	2.54 mm	0.1 in	Green		4-40 Threaded Insert Top Mount Opening		Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Through Hole	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-080-521-804	2	Gold	Solder	2	125 °C	-40 °C	2.54 mm	0.1 in	Green	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Through Hole	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-080-540-207	2	Gold	Wire Wrap	2	125 °C	-40 °C	2.54 mm	0.1 in	Green		Flush Mount M3 Threaded Insert Top Opening		Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Through Hole	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-080-555-203	2	Gold	Solder	2	125 °C	-40 °C	2.54 mm	0.1 in	Green	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever	Card Extender
EDAC Inc. 845-080-556-802	2	Gold	Solder	2	125 °C	-40 °C	2.54 mm	0.1 in	Green				Copper Alloy	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	80	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	40	Non Specified - Dual Edge	Cantilever	Card Extender	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 85.45
Newark	Each	1	$ 102.55
		100	$ 65.73
		250	$ 55.09
		500	$ 50.45
		1000	$ 42.25

Description

General part information

845-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
