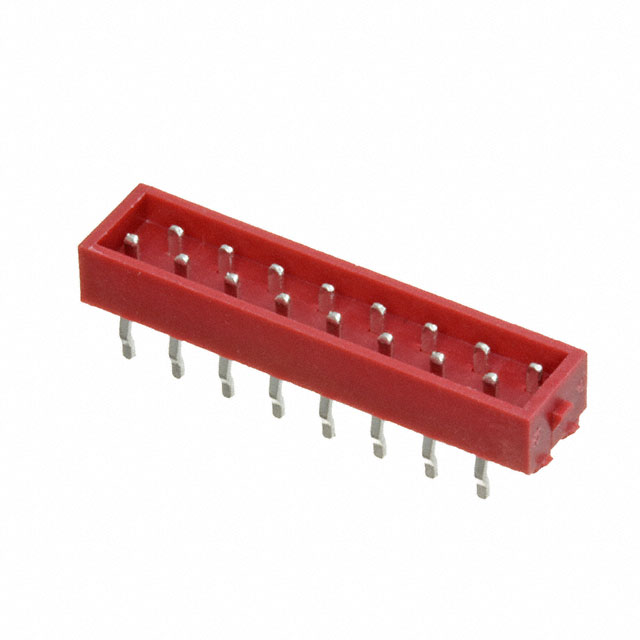

3522-16-0100-99

Active

CnC Tech, LLC

CONN HEADER VERT 16POS 2.54MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER VERT 16POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	3522-16-0100-99

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	500 VAC

Part	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shrouding	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Contact Shape	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions	Number of Rows	Contact Finish - Post	Connector Type	Style
CnC Tech, LLC 3522-16-0101-99	Male Pin	Surface Mount	-40 °C	105 ░C	Brass	Shrouded - 4 Wall	Nylon 9T Polyamide (PA9T)	3.7 mm	0.146 "	UL94 V-0	Solder	Rectangular	Locking Ramp	All	0.1 in	2.54 mm	500 VAC	16	2	Tin	Header	Board to Board Cable
CnC Tech, LLC 3522-16-0100-99	Male Pin	Through Hole	-40 °C	105 ░C	Brass	Shrouded - 4 Wall	Nylon 9T Polyamide (PA9T)	3.7 mm	0.146 "	UL94 V-0	Kinked Pin Solder	Rectangular	Locking Ramp	All	0.1 in	2.54 mm	500 VAC	16	2	Tin	Header	Board to Board Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 16 position 0.100" (2.54mm)
