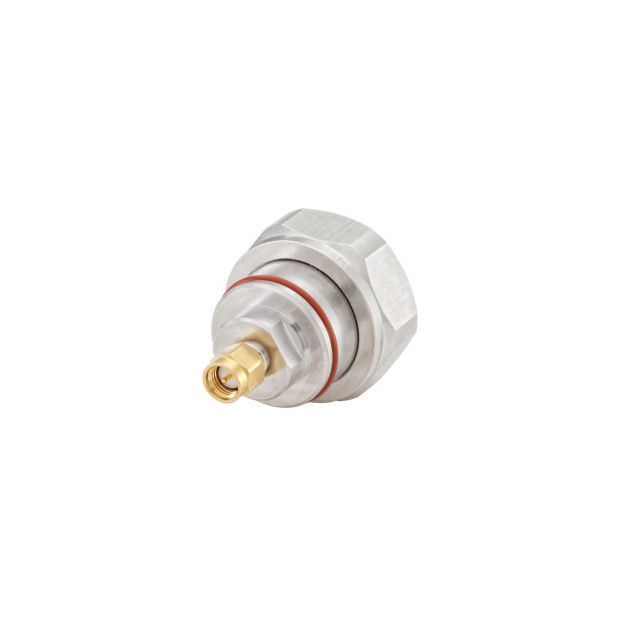

Specification	32S160-S00N5

Adapter Series	SMA to 7/16
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Between Series
Convert From (Adapter End)	Male Pin, 7/16 Plug
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	SMA Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	8.3 GHz
Impedance	50 Ohm
Insertion Loss	0.09 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

32S160 Series

Part	Dielectric Material	Body Material	Center Contact Material	Insertion Loss	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Fastening Type	Center Gender	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Style	Conversion Type	Adapter Series	Adapter Type	Center Contact Plating	Impedance	Convert From (Adapter End)	Mounting Type	Frequency - Max
Rosenberger 32S160-S00N5	Polytetrafluoroethylene (PTFE)	Brass	Brass	0.09 dB	White Bronze	-65 °C	165 °C	500 cycles	Threaded	Male	SMA Plug	Male Pin	Straight	Between Series	SMA to 7/16	Plug to Plug	Gold	50 Ohm	7/16 Plug Male Pin	Free Hanging (In-Line)	8.3 GHz
