LDT-N2804RI

Active

Lumex Opto/Components Inc.

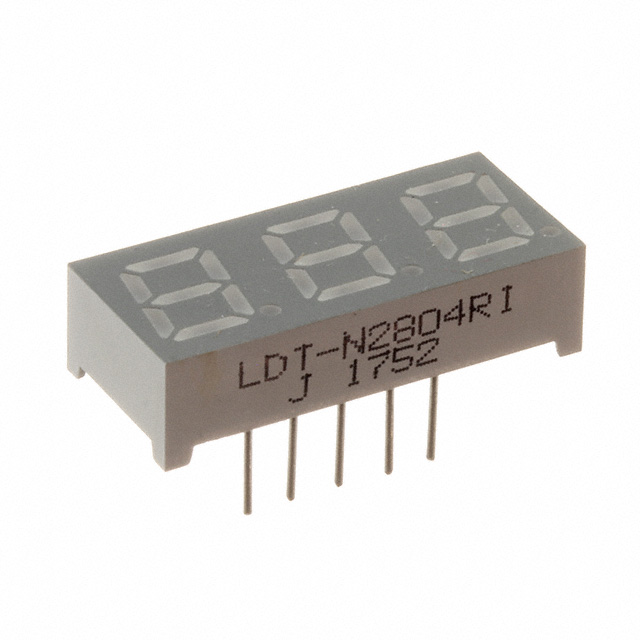

DISPLAY 7SEG 0.28" TRP RED 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDT-N2804RI

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.28" TRP RED 12DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDT-N2804RI

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	7 mm
Digit/Alpha Size	0.28 in
Display Type	7-Segment
Millicandela Rating	1.4 mcd
Number of Characters	3
Package / Case	0.3 in, 11 Leads, 7.62 mm
Package / Case	12-DIP
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	10 mm
Size / Dimension [x]	0.394 "
Size / Dimension [y]	22.53 mm
Size / Dimension [y]	0.887 in
Size / Dimension [z]	6.1 mm
Size / Dimension [z]	0.24 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

LDT-N2804 Series

DISPLAY 7SEG 0.28" TRP RED 12DIP

Part	Wavelength - Peak	Color	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Package / Case	Package / Case	Number of Characters	Display Type	Current - Test	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Lumex Opto/Components Inc. LDT-N2804RI	635 nm	Red	2 V	105 mW	1.4 mcd	7 mm	0.28 in	Common Cathode	0.3 in, 7.62 mm, 11 Leads	12-DIP	3	7-Segment	10 mA	6.1 mm	22.53 mm	0.24 "	10 mm	0.887 in	0.394 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.27
		22	$ 2.31
		110	$ 1.89
		506	$ 1.59
		1012	$ 1.46
		2002	$ 1.40
		5016	$ 1.37

Description

General part information

LDT-N2804 Series

Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Cathode 2V 10mA 0.394" H x 0.887" W x 0.240" D (10.00mm x 22.53mm x 6.10mm) 12-DIP (0.300", 7.62mm), 11 Leads

Documents

Technical documentation and resources

No documents available
