SI5324-EVB

Active

Skyworks Solutions Inc.

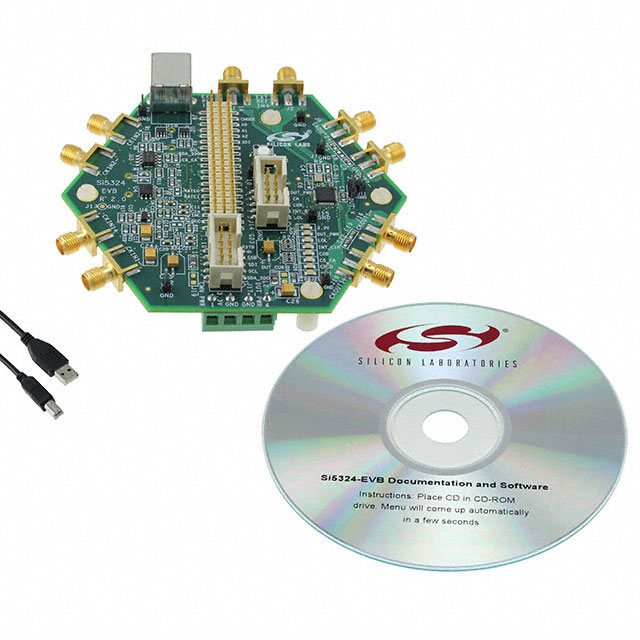

SI5324 CLOCK GENERATOR AND SYNTHESIZER EVALUATION BOARD

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

SI5324 CLOCK GENERATOR AND SYNTHESIZER EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Input	Operating Temperature [Max]	Operating Temperature [Min]	Output	Supplier Device Package	Main Purpose	Frequency - Max [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Ratio - Input:Output [custom]	Package / Case	Mounting Type	Secondary Attributes	Contents	Supplied Contents	Utilized IC / Part	Function	Type
Skyworks Solutions Inc. SI5324A-C-GM	Clock	85 °C	-40 °C	CML CMOS LVDS LVPECL	36-QFN (6x6)	Ethernet (WAN) SONET/SDH/STM Video	1.42 GHz	3.63 V	1.71 V	1	2:2	36-VFQFN Exposed Pad	Surface Mount
Skyworks Solutions Inc. SI5324B-C-GM	Clock	85 °C	-40 °C	CML CMOS LVDS LVPECL	36-QFN (6x6)	Ethernet (WAN) SONET/SDH/STM Video	808 MHz	3.63 V	1.71 V	1	2:2	36-VFQFN Exposed Pad	Surface Mount
Skyworks Solutions Inc. SI5324B-C-GMR	Clock	85 °C	-40 °C	CML CMOS LVDS LVPECL	36-QFN (6x6)	Ethernet (WAN) SONET/SDH/STM Video	808 MHz	3.63 V	1.71 V	1	2:2	36-VFQFN Exposed Pad	Surface Mount
Skyworks Solutions Inc. SI5324-EVB														CML CMOS LVDS LVPECL	Board(s)	Board(s)	SI5324	Clock Multiplier	Timing
Skyworks Solutions Inc. SI5324C-C-GMR	Clock	85 °C	-40 °C	CML CMOS LVDS LVPECL	36-QFN (6x6)	Ethernet (WAN) SONET/SDH/STM Video	346 MHz	3.63 V	1.71 V	1	2:2	36-VFQFN Exposed Pad	Surface Mount
Skyworks Solutions Inc. SI5324E-C-GM	Clock	85 °C	-40 °C	CML CMOS LVDS LVPECL	36-QFN (6x6)	3G Ethernet PCI SONET/SDH Wireless systems	1.417 GHz	3.63 V	1.71 V	1	2:2	36-VFQFN	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 194.26

General part information

SI5324 - Clock Multiplier Timing Evaluation Board
