OSA-SH-205DM5,600

Obsolete

TE Connectivity Potter & Brumfield Relays

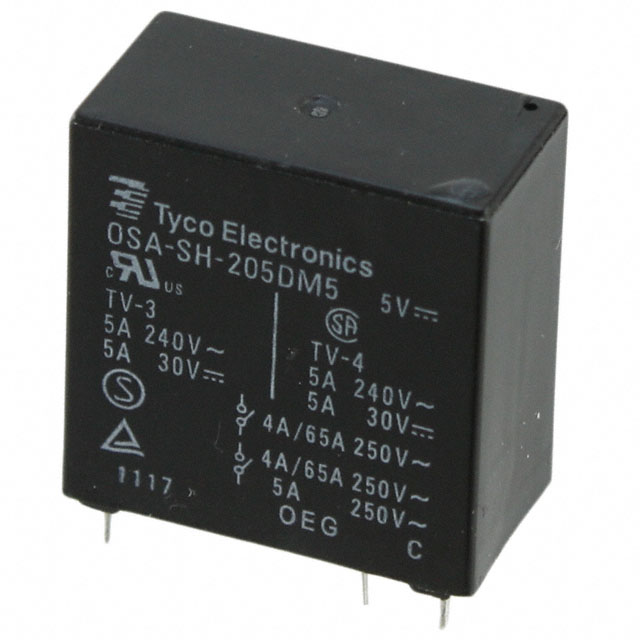

RELAY GEN PURPOSE DPST 5A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSA-SH-205DM5,600

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPST 5A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSA-SH-205DM5,600

Approval Agency	CQC, UR, CSA, TUV
Coil Current	108 mA
Coil Resistance	47 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	5 A
Load - Max Switching	1200 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.25 VDC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	30 VDC, 240 VAC
Termination Style	PC Pin

OSA-SH Series

Part	Relay Type	Contact Rating (Current)	Release Time	Coil Type	Coil Current	Contact Material	Load - Max Switching	Must Release Voltage	Coil Resistance	Switching Voltage	Approval Agency	Seal Rating	Coil Voltage	Operate Time	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Termination Style	Must Operate Voltage
TE Connectivity Potter & Brumfield Relays OSA-SH-212DM3,000M	General Purpose	3 A	10 ms	Non Latching	45 mA	Silver Alloy	90 W 720 VA	0.6 VDC	270 Ohms	30 VDC 240 VAC	CQC CSA TUV UR	Sealed - Fully	12 VDC	20 ms	Through Hole	-30 ░C	60 °C	DPST-NO (2 Form A)	PC Pin	9 VDC
TE Connectivity Potter & Brumfield Relays OSA-SH-224DM3,000M	General Purpose	3 A	10 ms	Non Latching	22.5 mA	Silver Alloy	90 W 720 VA	1.2 VDC		30 VDC 240 VAC	CQC CSA TUV UR	Sealed - Fully	24 VDC	20 ms	Through Hole	-30 ░C	60 °C	DPST-NO (2 Form A)	PC Pin	18 VDC
TE Connectivity Potter & Brumfield Relays OSA-SH-205DM5,600	General Purpose	5 A	10 ms	Non Latching	108 mA	Silver Tin Oxide (AgSnO)	150 W 1200 VA	0.25 VDC	47 Ohms	30 VDC 240 VAC	CQC CSA TUV UR	Sealed - Fully	5 VDC	20 ms	Through Hole	-30 ░C	60 °C	DPST-NO (2 Form A)	PC Pin	3.75 VDC
TE Connectivity Potter & Brumfield Relays OSA-SH-212DM5,000	General Purpose	5 A	10 ms	Non Latching	45 mA	Silver Tin Oxide (AgSnO)	150 W 1200 VA	0.6 VDC	270 Ohms	30 VDC 240 VAC	CQC CSA TUV UR	Sealed - Fully	12 VDC	20 ms	Through Hole	-30 ░C	60 °C	DPST-NO (2 Form A)	PC Pin	9 VDC
TE Connectivity Potter & Brumfield Relays OSA-SH-212DM3,000	General Purpose	3 A	10 ms	Non Latching	45 mA	Silver Alloy	90 W 720 VA	0.6 VDC	270 Ohms	30 VDC 240 VAC	CQC CSA TUV UR	Sealed - Fully	12 VDC	20 ms	Through Hole	-30 ░C	60 °C	DPST-NO (2 Form A)	PC Pin	9 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.53
		10	$ 2.17
		25	$ 2.03
		50	$ 1.93
		100	$ 1.88

Description

General part information

OSA-SH Series

General Purpose Relay DPST-NO (2 Form A) 5VDC Coil Through Hole
