Q-2V03S0005084I

Active

Amphenol Custom Cable

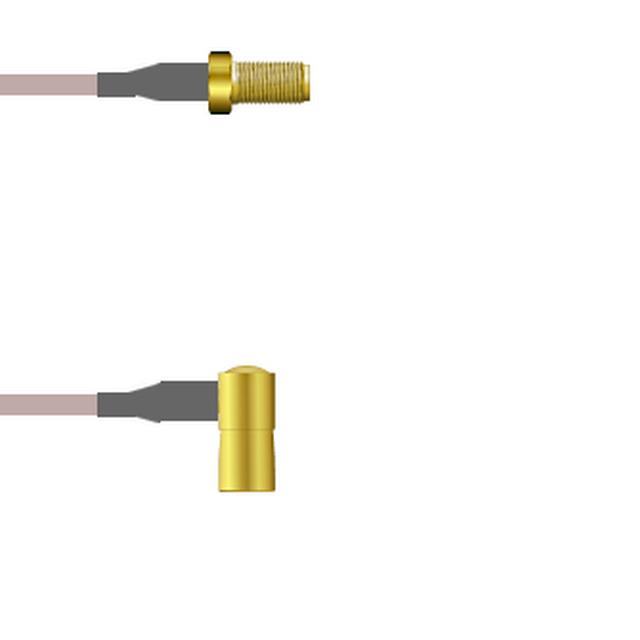

CBL ASSY SMA-SMB JACK-PLUG 7'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-PLUG 7'

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector	Cable Impedance	Length	Length	Frequency - Max [Max]	Color	Features	2nd Connector Mounting Type	2nd Contact Gender	Connector Impedance	1st Contact Gender	1st Connector Mounting Type	Overall Impedance	Cable Type	Style	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2V03S0005024I	SMB Plug Right Angle	50 Ohms	24 "	609.6 mm	3 GHz	Copper	Shielded	Free Hanging (In-Line)	Female	50 Ohms	Female	Free Hanging (In-Line)	50 Ohms	RG-316	SMA to SMB	SMA Jack
Amphenol Custom Cable Q-2V03S0005084I	SMB Plug Right Angle	50 Ohms	84 in	2.1 m	3 GHz	Copper	Shielded	Free Hanging (In-Line)	Female	50 Ohms	Female	Free Hanging (In-Line)	50 Ohms	RG-316	SMA to SMB	SMA Jack	7 ft
Amphenol Custom Cable Q-2V03S0005060I	SMB Plug Right Angle	50 Ohms	5 '	1.5 m	3 GHz	Copper	Shielded	Free Hanging (In-Line)	Female	50 Ohms	Female	Free Hanging (In-Line)	50 Ohms	RG-316	SMA to SMB	SMA Jack	5 ft
Amphenol Custom Cable Q-2V03S0005072I	SMB Plug Right Angle	50 Ohms	72 in	1.8 m	3 GHz	Copper	Shielded	Free Hanging (In-Line)	Female	50 Ohms	Female	Free Hanging (In-Line)	50 Ohms	RG-316	SMA to SMB	SMA Jack	6 ft
Amphenol Custom Cable Q-2V03S0005018I	SMB Plug Right Angle	50 Ohms			3 GHz	Copper	Shielded	Free Hanging (In-Line)	Female	50 Ohms	Female	Free Hanging (In-Line)	50 Ohms	RG-316	SMA to SMB	SMA Jack		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2V03S0005108I	SMB Plug Right Angle	50 Ohms	108 in	2.7 m	3 GHz	Copper	Shielded	Free Hanging (In-Line)	Female	50 Ohms	Female	Free Hanging (In-Line)	50 Ohms	RG-316	SMA to SMB	SMA Jack	9 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-316 84.0" (2.1m) 7.0'

Technical documentation and resources

No documents available
