1906-1-201-01

Active

Kendall Howard

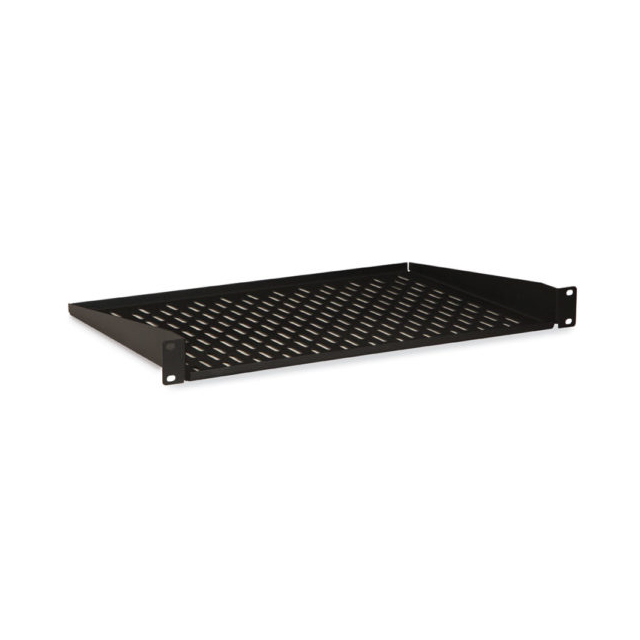

1U 12" VENTED COMPONENT SHELF

Search across all available documentation for this part.

Active

Kendall Howard

1U 12" VENTED COMPONENT SHELF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cold Roll Steel (CRS) Shelf, Fixed 19.000" L x 12.000" W x 1.720" H (482.60mm x 304.80mm x 43.69mm) Black

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1906-1-201-01	1906-1 Series

Color	Black	Black
For Use With/Related Products	19" Panel Width Racks	19" Panel Width Racks
Material	Cold Roll Steel (CRS)	Cold Roll Steel (CRS)
Size / Dimension	-	88.14 mm
Size / Dimension	-	355.6 mm
Size / Dimension [x]	482.6 mm	482.6 mm
Size / Dimension [x]	19 "	19 "
Size / Dimension [y]	304.8 mm	127 - 406.4 mm
Size / Dimension [y]	12 "	5 - 16 in
Size / Dimension [z]	43.69 mm	43.69 - 132.08 mm
Size / Dimension [z]	1.72 in	1.72 - 5.2 in
Type	Shelf, Fixed	Shelf, Fixed
Ventilation	Vented	Vented, Non-Vented
Weight	2.4 kg	1.09 - 4.5 kg
Weight	5.3 lbs	2.4 - 10 lbs

2U 14 VENTED ECO SHELF

Part	Type	For Use With/Related Products	Color	Material	Ventilation	Weight	Weight	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]
Kendall Howard 1906-1-010-02	Shelf, Fixed	19" Panel Width Racks	Black	Cold Roll Steel (CRS)	Vented	2.7 kg	6 lbs	19 "	482.6 mm	88.14 mm	355.6 mm	3.47 in	14 in
Kendall Howard 1906-1-011-01	Shelf, Fixed	19" Panel Width Racks	Black	Cold Roll Steel (CRS)	Non-Vented	1.09 kg	2.4 lbs	19 "	482.6 mm			1.72 in	5 "	127 mm	43.69 mm
Kendall Howard 1906-1-201-01	Shelf, Fixed	19" Panel Width Racks	Black	Cold Roll Steel (CRS)	Vented	2.4 kg	5.3 lbs	19 "	482.6 mm			1.72 in	12 "	304.8 mm	43.69 mm
Kendall Howard 1906-1-001-01	Shelf, Fixed	19" Panel Width Racks	Black	Cold Roll Steel (CRS)	Non-Vented	2.9 kg	6.4 lbs	19 "	482.6 mm			1.72 in	12 "	304.8 mm	43.69 mm
Kendall Howard 1906-1-003-03	Shelf, Fixed	19" Panel Width Racks	Black	Cold Roll Steel (CRS)	Non-Vented	4.5 kg	10 lbs	19 "	482.6 mm			5.2 in	16 in	406.4 mm	132.08 mm
Kendall Howard 1906-1-002-02	Shelf, Fixed	19" Panel Width Racks	Black	Cold Roll Steel (CRS)	Non-Vented	3.9 kg	8.5 lbs	19 "	482.6 mm	88.14 mm	355.6 mm	3.47 in	14 in
